OAuth 2.0

Casdoor issues access tokens for authenticating clients. This page describes how to get a token via the API, verify it, and use it. Alternatively use Casdoor SDKs to handle the flow.

Supported grant types:

Grant TypeRFCUse Case
Authorization CodeRFC 6749 §4.1Default; web/mobile apps with a backend. Enabled by default.
ImplicitRFC 6749 §4.2Frontend-only apps without a backend.
Resource Owner PasswordRFC 6749 §4.3Apps with no frontend redirect; user credentials sent directly.
Client CredentialsRFC 6749 §4.4Service-to-service calls with no user involved.
Refresh TokenRFC 6749 §6Renew an access token without re-authenticating.
Device AuthorizationRFC 8628Devices with limited input or no browser.
Token ExchangeRFC 8693Swap an existing token for one with different scope or audience.
JWT BearerRFC 7523Service auth using a signed JWT assertion instead of a client secret.
Verification CodeCasdoor extensionNative apps that sign users in (and up) with a code sent by SMS or email.

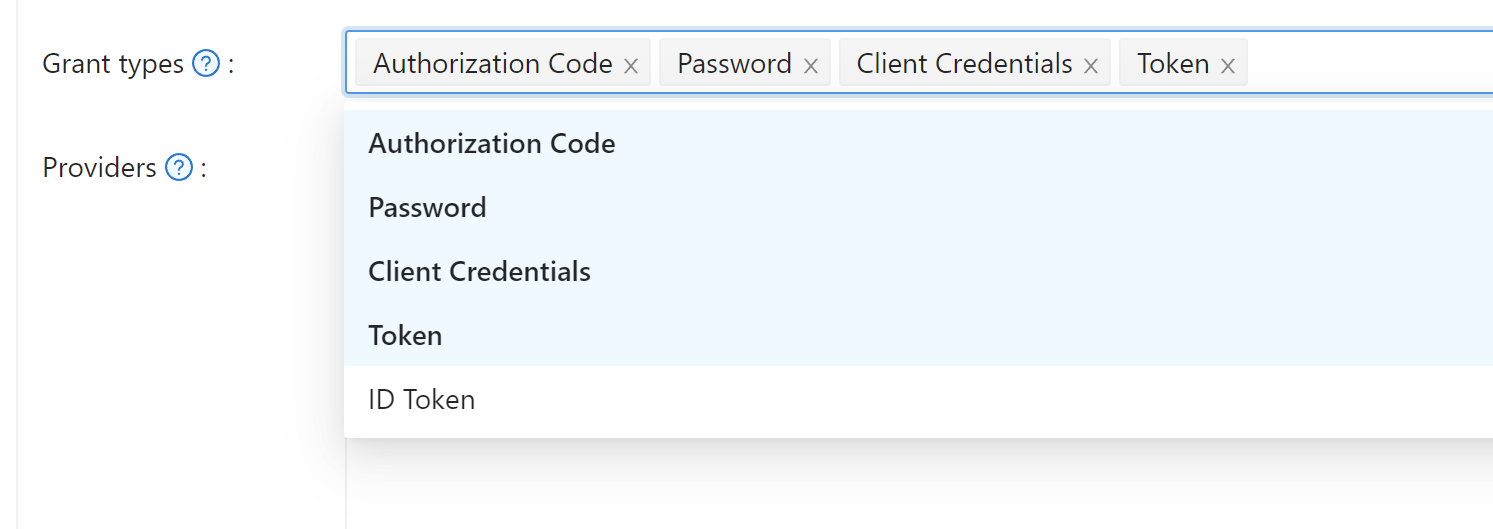

Enable non-default grant types on the application edit page.

Grant Types

Authorization code grant​

Redirect the user to:

https://<CASDOOR_HOST>/login/oauth/authorize?
client_id=CLIENT_ID&
redirect_uri=REDIRECT_URI&
response_type=code&
scope=openid&
state=STATE

Scopes​

ScopeDescription
openid (default)sub, iss, aud
profilename, displayName, avatar
emailemail address
addressaddress (OIDC object in JWT-Standard; see OIDC address claim)
phonephone number
info

Request scopes in the authorize URL. Separate multiple scopes with %20:

https://<CASDOOR_HOST>/login/oauth/authorize?
client_id=...&
scope=openid%20email

See the OIDC spec for details.

After the user signs in, Casdoor redirects to:

https://REDIRECT_URI?code=CODE&state=STATE

Exchange the code for tokens with a POST to:

https://<CASDOOR_HOST>/api/login/oauth/access_token

Request body:

{
    "grant_type": "authorization_code",
    "client_id": ClientId,
    "client_secret": ClientSecret,
    "code": Code,
}

Example response:

{
    "access_token": "eyJhb...",
    "id_token": "eyJhb...",
    "refresh_token": "eyJhb...",
    "token_type": "Bearer",
    "expires_in": 10080,
    "scope": "openid"
}
note

Casdoor supports PKCE (Proof Key for Code Exchange) for enhanced security. To enable PKCE, add two parameters when requesting the authorization code:

&code_challenge_method=S256&code_challenge=YOUR_CHALLENGE

The code challenge should be a Base64-URL-encoded SHA-256 hash of your randomly generated code verifier (43-128 characters). When requesting the token, include the original code_verifier parameter. With PKCE enabled, client_secret becomes optional, but if provided, it must be correct.

For OAuth providers configured in Casdoor (like Twitter and custom providers with PKCE enabled), Casdoor automatically generates unique code verifiers for each authentication flow, so you don't need to manually implement PKCE.

Binding Tokens to Specific Services​

When your application needs to call multiple backend services, you might want tokens that are explicitly bound to a specific service. This prevents security issues where a token meant for one service could accidentally be used with another.

Casdoor supports RFC 8707 Resource Indicators, which lets you specify the intended service when requesting authorization. Add the resource parameter with an absolute URI identifying your service:

https://<CASDOOR_HOST>/login/oauth/authorize?
client_id=CLIENT_ID&
redirect_uri=REDIRECT_URI&
response_type=code&
scope=openid&
state=STATE&
resource=https://api.example.com

When you exchange the authorization code for tokens, include the same resource parameter:

{
    "grant_type": "authorization_code",
    "client_id": ClientId,
    "client_secret": ClientSecret,
    "code": Code,
    "resource": "https://api.example.com"
}

The resulting access token will have its aud (audience) claim set to your resource URI instead of the client ID. Your backend service can then verify that tokens were issued specifically for it by checking the audience claim. The resource must match exactly between the authorization and token requests.

The resource parameter is preserved through browser-based login flows. If a user needs to complete an interactive login (e.g. password entry, MFA, or WebAuthn), the parameter is carried through the entire redirect chain and included when the authorization code is issued.

provider_hint parameter​

To skip the Casdoor login page and send the user directly to a specific OAuth provider, add provider_hint=<provider-name> to the authorize URL:

https://<CASDOOR_HOST>/login/oauth/authorize?
client_id=CLIENT_ID&
redirect_uri=REDIRECT_URI&
response_type=code&
scope=openid&
state=STATE&
provider_hint=github

Casdoor serves a lightweight redirect page (without loading the full React app) that immediately bounces the user to that provider's OAuth flow. This reduces time-to-redirect on constrained devices or slow connections.

Signup Flow with OAuth​

When users sign up through the OAuth authorization flow, they are automatically redirected to your application's callback URL with the authorization code, just like the sign-in flow. Previously, users had to manually click through intermediate pages after creating their account. Now the signup process matches the streamlined experience of signing in—once registration completes, Casdoor immediately generates the authorization code and redirects to your redirect_uri.

Your application doesn't need any changes to support this. The authorization parameters (client_id, response_type, redirect_uri, etc.) are automatically passed through the signup process when users choose to create a new account during OAuth authorization.

Implicit Grant​

For apps without a backend, use Implicit Grant. Enable it on the application, then redirect users to:

caution

The Implicit Grant token endpoint requires a valid username and password. Pure OAuth users (accounts created exclusively via a third-party provider with no local password set) cannot use this flow and will receive invalid_grant. Use the Authorization Code flow for social-login users.

https://<CASDOOR_HOST>/login/oauth/authorize?client_id=CLIENT_ID&redirect_uri=REDIRECT_URI&response_type=token&scope=openid&state=STATE

After your user has authenticated with Casdoor, Casdoor will redirect them to:

https://REDIRECT_URI/#access_token=ACCESS_TOKEN

Casdoor also supports the id_token as response_type, which is a feature of OpenID.

Device Grant​

For devices with limited input or no browser, use Device Grant. Enable it on the application, request device_authorization_endpoint from OIDC discovery, then show verification_uri (e.g. via QR or text) so the user can complete login.

Casdoor provides a built-in device login page at the verification_uri where the user enters the user code and signs in — no custom UI is required. Device login can also be enabled as a sign-in method on the application's Signin methods table.

Meanwhile, the device polls the token endpoint with its device_code until the user has signed in, as described in RFC 8628, section 3.4.

Scanning the website's QR code with your app​

The same flow lets users who are signed in to your native app sign in to your website by scanning a QR code, the way many apps do. Add Device login to the application's Signin methods with the rule Login page, and enable Device Code in Grant types. The login page then shows a QR code next to the form and finishes the sign-in by itself once it is approved.

The QR code holds the verification_uri, for example https://<CASDOOR_HOST>/login/oauth/device/ra91hy?cancelToken=.... A phone camera opens it in the browser, where the user approves after signing in. Your app can instead approve it directly with the access token it already has: take the user code from the path (ra91hy), show the user what is being signed in to, and send a POST request to https://<CASDOOR_HOST>/api/login with the header Authorization: Bearer <ACCESS_TOKEN>:

{
    "application": ApplicationName,
    "organization": OrganizationName,
    "type": "device",
    "userCode": "ra91hy"
}

To reject the sign-in, send userCode and the cancelToken from the same URL to https://<CASDOOR_HOST>/api/cancel-device-auth as query parameters.

Multi-replica deployments

The pending device-authorization requests (the mapping between the device code and the user code) are held in an in-memory store by default. In a multi-replica / horizontally-scaled deployment, the polling request from the device and the browser confirmation may land on different replicas, so an in-memory store causes the device flow to fail intermittently.

To make the device flow work across replicas, configure redisEndpoint in conf/app.conf. When it is set, Casdoor automatically backs the device-authorization store with Redis so all replicas share the same state. No extra configuration key is needed — the same redisEndpoint value used for shared sessions is reused (format: host:port[,db[,password]]). If Redis cannot be reached at startup, Casdoor logs a warning and falls back to the in-memory store. See Configuration.

Resource Owner Password Credentials Grant​

If your application doesn't have a frontend that redirects users to Casdoor, then you may need this.

Enable Password Credentials Grant on the application, then send a POST request to:

https://<CASDOOR_HOST>/api/login/oauth/access_token
{
    "grant_type": "password",
    "client_id": ClientId,
    "client_secret": ClientSecret,
    "username": Username,
    "password": Password,
}

Example response:

{
    "access_token": "eyJhb...",
    "id_token": "eyJhb...",
    "refresh_token": "eyJhb...",
    "token_type": "Bearer",
    "expires_in": 10080,
    "scope": "openid"
}

Verification Code Grant​

Native apps that sign users in with a phone number or email and a one-time code, without opening a browser, use this grant. It is a Casdoor extension grant (RFC 6749 section 4.5). An address that has no account yet is signed up in the same step when the application allows it.

Enable Verification Code in the application's Grant types and add an SMS and/or email provider to the application. Then:

  1. Send the code with a POST request to https://<CASDOOR_HOST>/api/send-verification-code (form data):

    FieldValue
    applicationIdadmin/<APPLICATION_NAME>
    typephone or email
    destThe phone number or email
    countryCodeThe region of a phone number, e.g. CN or US. Not needed for an E.164 number like +8613800000000
    methodlogin
    captchaTypenone, or the captcha type and captchaToken when the application's captcha provider asks for one

  2. Exchange the code for tokens with a POST request to https://<CASDOOR_HOST>/api/login/oauth/access_token:

    {
        "grant_type": "urn:casdoor:params:oauth:grant-type:verification-code",
        "client_id": ClientId,
        "username": "+8613800000000",
        "code": "123456",
        "scope": "openid profile"
    }

    username is the phone number or email the code was sent to. For a phone number in the national format, also send country_code. No client secret is needed, so the grant works from a public client. The response is the same as for the other grants, with a refresh_token to keep the user signed in.

Signing up new users: when no user has the phone number or email, the grant creates the user, the same as the signup page would, if all of these hold:

  • Enable signup is on for the application, and Disable self signup is off.
  • The application's Signup items require nothing but what the code proves: an item other than ID, Username, Display name, Password, Confirm password, Agreement, Signup button and Providers can't be required, and Email (or Phone) can only be required when signing up with an email (or a phone number). The default signup items require both, so make the other one optional.
  • For a phone number, its region is in the organization's Supported country codes.

Otherwise /api/send-verification-code answers that the user does not exist, the same as before, and only existing users can sign in. Wrong codes count towards the application's Failed signin limit. Users who have MFA enabled are refused, use the authorization code flow for them.

Client Credentials Grant​

Use Client Credentials Grant when the application has no frontend.

Enable Client Credentials Grant on the application and send a POST request to https://<CASDOOR_HOST>/api/login/oauth/access_token:

{
    "grant_type": "client_credentials",
    "client_id": ClientId,
    "client_secret": ClientSecret,
}

Example response:

{
    "access_token": "eyJhb...",
    "id_token": "eyJhb...",
    "refresh_token": "eyJhb...",
    "token_type": "Bearer",
    "expires_in": 10080,
    "scope": "openid"
}

It is important to note that the AccessToken obtained in this way differs from the first three in that it corresponds to the application rather than to the user.

Refresh Token​

To refresh the access token, use the refreshToken obtained above.

Set the Refresh Token expiration in the application (default 0 hours), then send a POST request to https://<CASDOOR_HOST>/api/login/oauth/refresh_token

{
    "grant_type": "refresh_token",
    "refresh_token": REFRESH_TOKEN,
    "scope": SCOPE,
    "client_id": ClientId,
    "client_secret": ClientSecret,
}

Example response:

{
    "access_token": "eyJhb...",
    "id_token": "eyJhb...",
    "refresh_token": "eyJhb...",
    "token_type": "Bearer",
    "expires_in": 10080,
    "scope": "openid"
}

Rotation: by default every refresh returns a new refresh token and revokes the one that was used, as recommended for public clients by RFC 9700. Store the new one after each refresh. Presenting a used refresh token again fails with invalid_grant.

When several processes share one refresh token, e.g. a CLI that runs parallel jobs with the token from an environment variable, the first refresh revokes it for all the others. For such clients turn on Disable refresh token rotation in the application's OIDC/OAuth settings. A refresh then returns the same refresh token, which keeps its original expiry, and the access tokens of earlier refreshes stay valid until they expire. Signing out still revokes the refresh token for everyone. This is less secure, a leaked refresh token can be used until it expires, so keep Refresh token expire short and prefer DPoP for public clients.

Renaming a user doesn't break the user's refresh tokens.

Token Exchange Grant​

Token Exchange (RFC 8693) lets you swap an existing token for a new one with different characteristics—particularly useful when one service needs to call another on behalf of a user, or to narrow a token's scope for a specific downstream service.

To exchange a token, send a POST request to https://<CASDOOR_HOST>/api/login/oauth/access_token:

{
    "grant_type": "urn:ietf:params:oauth:grant-type:token-exchange",
    "client_id": ClientId,
    "client_secret": ClientSecret,
    "subject_token": SubjectToken,
    "subject_token_type": "urn:ietf:params:oauth:token-type:access_token",
    "scope": "openid email"
}

The subject_token is the token you want to exchange—typically an access token or JWT you already have. If you want to narrow the permissions in the new token, specify a scope that's a subset of the original token's scope. When you omit scope, the new token inherits the same scope as the subject token.

Casdoor supports three token types for subject_token_type:

  • urn:ietf:params:oauth:token-type:access_token (default)
  • urn:ietf:params:oauth:token-type:jwt
  • urn:ietf:params:oauth:token-type:id_token

The response returns a new token tied to the same user as your subject token:

{
    "access_token": "eyJhb...",
    "id_token": "eyJhb...",
    "refresh_token": "eyJhb...",
    "token_type": "Bearer",
    "expires_in": 10080,
    "scope": "openid email"
}

For example, an API gateway might exchange a broad-scoped access token for a narrower one before forwarding requests to a downstream microservice. This pattern—called scope downscoping—ensures each service gets only the permissions it needs, rather than inheriting full access from the original token.

Audience binding: Casdoor validates the subject_token using the certificate of its issuing application (identified by the azp claim), not the requesting client's certificate. If the requesting client differs from the token's issuer, the token's aud claim must include the requesting client's ID; otherwise the exchange is rejected with invalid_grant. This prevents one application from exchanging another application's tokens without explicit audience authorization (RFC 8693 §2.1).

JWT Bearer Grant​

JWT Bearer (RFC 7523) allows a client to obtain an access token by presenting a signed JWT assertion instead of a client secret. This is useful for service-to-service calls where the client holds a private key and wants to authenticate without sharing a long-lived secret.

Enable JWT Bearer on the application, then upload the client's certificate in the Client cert field under the Security tab. Casdoor uses the public key from that certificate to verify the JWT assertion.

Send a POST request to https://<CASDOOR_HOST>/api/login/oauth/access_token:

{
    "grant_type": "urn:ietf:params:oauth:grant-type:jwt-bearer",
    "client_assertion_type": "urn:ietf:params:oauth:client-assertion-type:jwt-bearer",
    "client_assertion": "<signed-JWT>",
    "client_id": "CLIENT_ID"
}

The JWT assertion (client_assertion) must be signed with the client's private key and contain:

ClaimDescription
issIssuer — the client_id of the application
subSubject — the client_id of the application
audAudience — the Casdoor token endpoint URL
expExpiry time (Unix timestamp)

Casdoor verifies the signature against the public key in the application's Client cert, checks the standard JWT claims, and—if valid—returns an access token tied to the application (same behavior as the Client Credentials grant).

Example response:

{
    "access_token": "eyJhb...",
    "token_type": "Bearer",
    "expires_in": 10080,
    "scope": "openid"
}

DPoP (sender-constrained tokens)​

Casdoor supports DPoP (Demonstrating Proof of Possession, RFC 9449), which binds an access token to a client-held key so that a leaked token cannot be used without the matching private key.

To request a DPoP-bound token, send a DPoP header containing a DPoP proof JWT with your token request:

POST /api/login/oauth/access_token
DPoP: <DPoP proof JWT>

When a valid proof is supplied, Casdoor binds the issued token to the proof's public key (its JWK thumbprint, jkt) and returns token_type as DPoP instead of Bearer:

{
    "access_token": "eyJhb...",
    "token_type": "DPoP",
    "expires_in": 10080,
    "scope": "openid"
}

The same DPoP header is also accepted on the refresh token request. An invalid proof is rejected with the invalid_dpop_proof error.

The supported proof signing algorithms are advertised in the OpenID Connect discovery document (/.well-known/openid-configuration) under dpop_signing_alg_values_supported:

{
    "dpop_signing_alg_values_supported": ["RS256", "RS512", "ES256", "ES384", "ES512", "PS256", "PS384", "PS512"]
}

The token introspection response also exposes the key binding through the cnf.jkt claim (RFC 9449 §8).

How to Verify Access Token​

Casdoor currently supports the token introspection endpoint. This endpoint is protected by Basic Authentication (ClientId:ClientSecret).

POST /api/login/oauth/introspect HTTP/1.1
Host: CASDOOR_HOST
Accept: application/json
Content-Type: application/x-www-form-urlencoded
Authorization: Basic Y2xpZW50X2lkOmNsaWVudF9zZWNyZXQ=

token=ACCESS_TOKEN&token_type_hint=access_token

Example response:

{
    "active": true,
    "client_id": "c58c...",
    "username": "admin",
    "token_type": "Bearer",
    "exp": 1647138242,
    "iat": 1646533442,
    "nbf": 1646533442,
    "sub": "7a6b4a8a-b731-48da-bc44-36ae27338817",
    "aud": [
        "c58c..."
    ],
    "iss": "http://localhost:8000"
}

How to Use AccessToken​

Use the access token to call Casdoor APIs that require authentication.

For example, there are two different ways to request /api/userinfo.

Type 1: Query parameter

https://CASDOOR_HOST/api/userinfo?accessToken=your_access_token

Type 2: HTTP Bearer token

https://CASDOOR_HOST/api/userinfo with the header: "Authorization: Bearer your_access_token"

Casdoor will parse the access_token and return corresponding user information according to the scope. The response has the same shape:

{
    "sub": "7a6b4a8a-b731-48da-bc44-36ae27338817",
    "iss": "http://localhost:8000",
    "aud": "c58c..."
}

If you expect more user information, add scope when obtaining the AccessToken in step Authorization code grant.

Accessing OAuth Provider Tokens​

When users sign in via OAuth providers (GitHub, Google, etc.), the provider's access token is available to call the third-party API on their behalf; it is stored in the user's originalToken field.

The token is available through the /api/get-account endpoint:

{
  "status": "ok",
  "data": {
    "name": "user123",
    "originalToken": "ya29.a0AfH6SMBx...",
    ...
  }
}

The originalToken is visible only when the user requests their own account or when the requester is an admin. For other requests, it is masked for privacy.

This allows your application to interact with third-party APIs (e.g., GitHub API, Google Drive API) using the provider's access token without requiring additional OAuth flows.

Differences between the userinfo and get-account APIs​

  • /api/userinfo: This API returns user information as part of the OIDC protocol. It provides limited information, including only the basic information defined in OIDC standards. For a list of available scopes supported by Casdoor, see the Scopes section.

  • /api/get-account: This API retrieves the user object for the currently logged-in account. It is a Casdoor-specific API that allows you to obtain all the information of the user in Casdoor, including the OAuth provider's access token when applicable.
