Store files on a Synology NAS

This guide explains how to store the uploaded files of Casdoor on a Synology NAS through its S3-compatible API.

---

Learning outcomes

• Add a Synology NAS as a storage provider in Casdoor.

What you need

• A Synology NAS with an S3-compatible endpoint and keys. See the Synology developer documentation.
• Administrator access to the Casdoor admin console

---

Add the provider in Casdoor

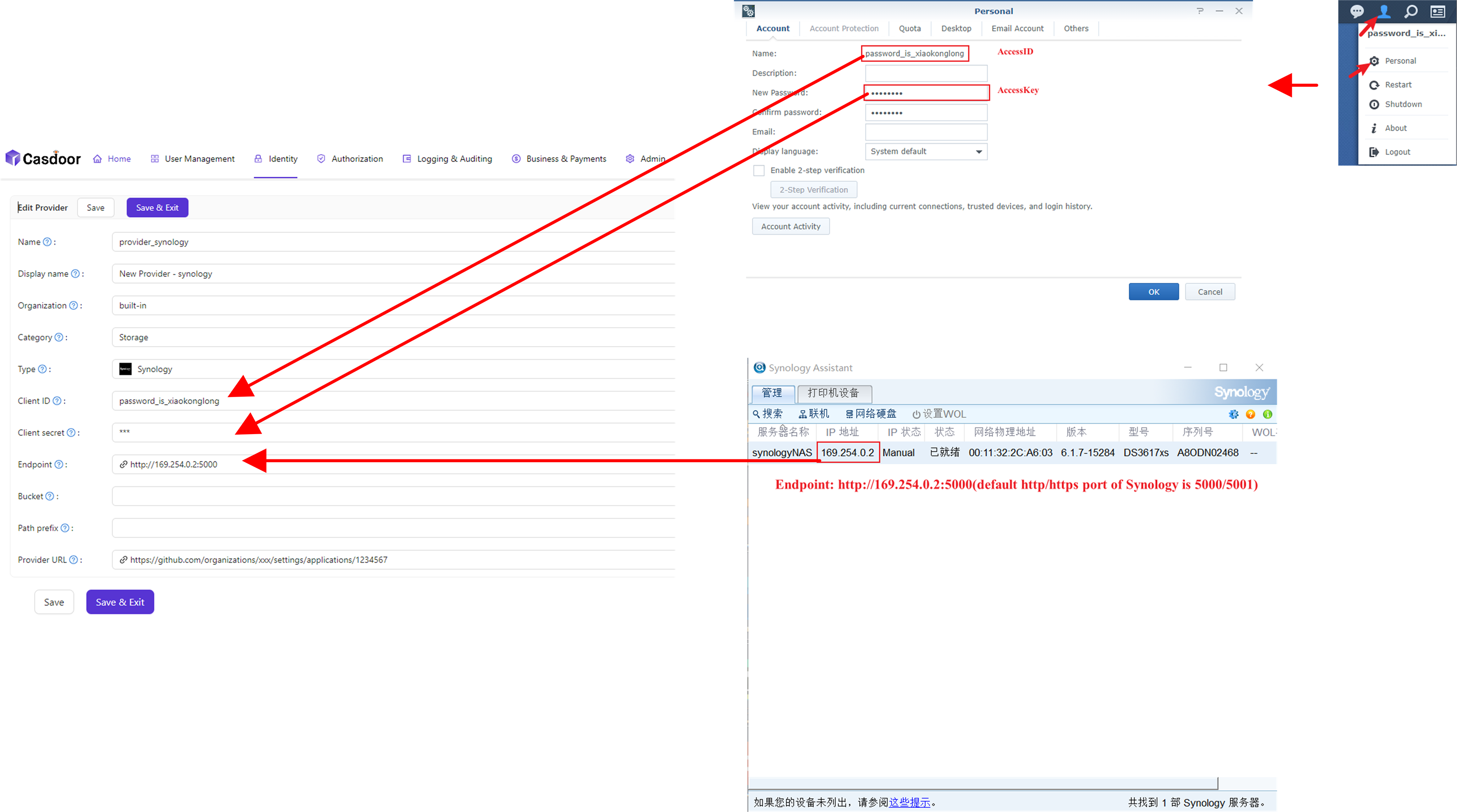

1. In the Casdoor admin console, go to Identity > Providers and add a provider.

2. Set Category to Storage and Type to Synology.

3. Fill in the fields. At least Client ID, Client secret, and Endpoint are required.

   Casdoor field	Synology / meaning	Required
   Client ID	SecretId (access key)	Yes
   Client secret	SecretKey	Yes
   Endpoint	S3 API endpoint	Yes
   Bucket	Bucket name	No
   Path prefix	Path prefix	No
   Domain	Custom domain	No
   Region ID	Region	No



4. Save the provider.

See also

• Storage providers
