Database syncer

The database syncer connects to an external database and syncs user data into Casdoor. A demo users table can be imported from the template XLSX.

Create a syncer

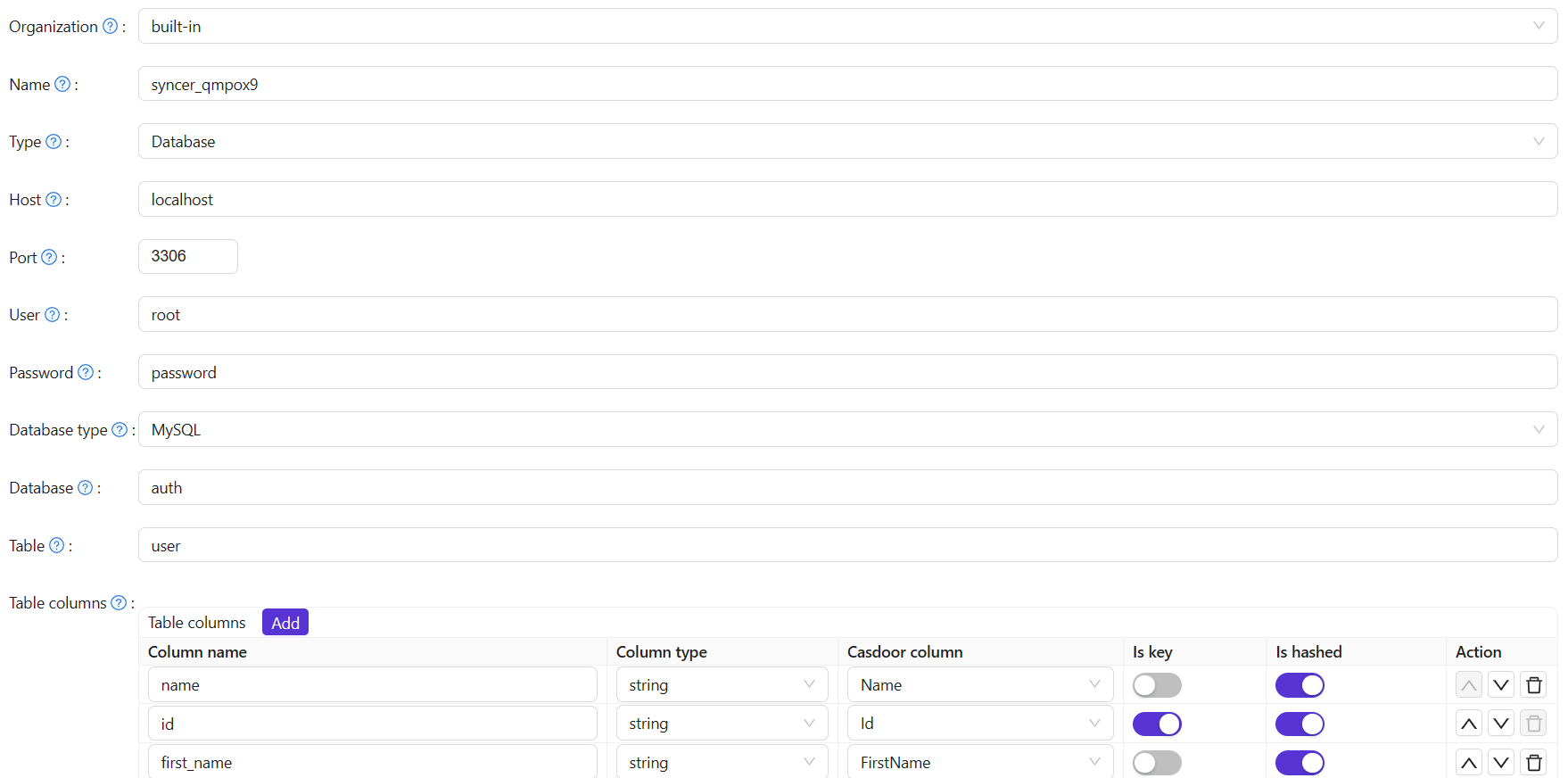

Go to Syncers and create a new syncer with the following. Save when done.

consejo

Fill at least ID and Name in the Casdoor column mapping. Other useful fields include createdTime, Password, and DisplayName.

Campos requeridos

Campo	Descripción
Organizacion	Organization to import users into.
Name	Syncer name.
Tipo - Información adicional	database.
Host, Port, User, Password	Source database connection.
Tipo de base de datos	MySQL, PostgreSQL, SQL Server, Oracle, or SQLite (Xorm-supported).
Base de datos	Source database name.
Tabla	Source user table name.
Columnas de la tabla	Column name (source), Column type (source), Casdoor Column (Casdoor user field).

Campos opcionales

Campo	Descripción
Está encriptado	If enabled, sync runs only when fields included in the hash change; other field-only changes do not trigger sync.
Es clave	Marks the primary key used to match source and Casdoor users. At least one column must be key; if none is set, the first is used.
URL base del Avatar	If set and source user.avatar does not start with http, Casdoor stores Avatar base URL + user.avatar.
Tabla de afiliación	Table used to sync user affiliation. Int codes can be mapped to names; see getAffiliationMap() and syncer_util (e.g. score for int→string mapping).

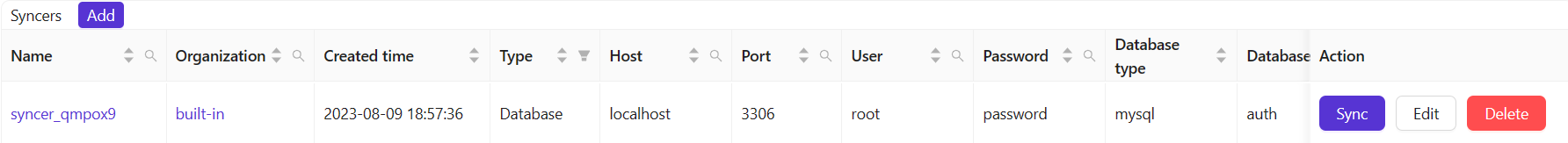

Enable Is enable and save; the syncer will run. You can also trigger a sync with the Sync button.

Actualizar

With Table columns configured for key mapping, differences on the key between source and Casdoor trigger updates:

• Update in source table — changes sync to Casdoor.

• Update in Casdoor — changes sync back to source.

Añadir

When row counts differ, the syncer adds rows to the table with fewer rows, using the key to match:

• Add user in source table:

• Add user in Casdoor table:
