Send email with SendGrid

This guide explains how to send the emails of Casdoor through the API of SendGrid.

---

Learning outcomes

• Create a SendGrid API key and verify a sender.
• Add SendGrid as an email provider in Casdoor and test it.

What you need

• A SendGrid account
• Administrator access to the Casdoor admin console

---

Prepare SendGrid

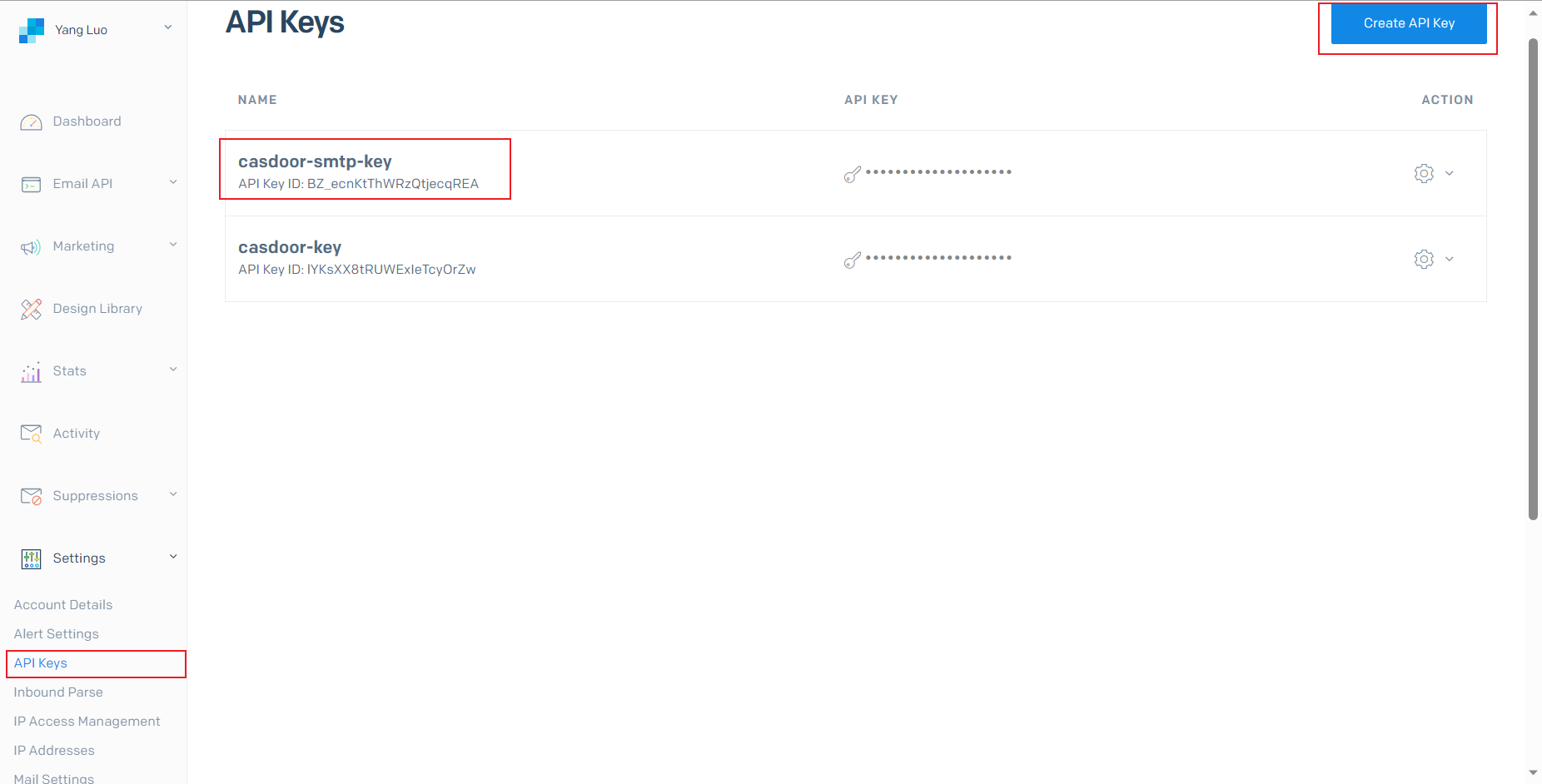

1. In the SendGrid dashboard, go to Settings > API Keys, click Create API Key, and select the permissions that you need. Copy the key.



2. Verify your sender with Single Sender Verification or Domain Authentication. See Sender Identity.

Add the provider in Casdoor

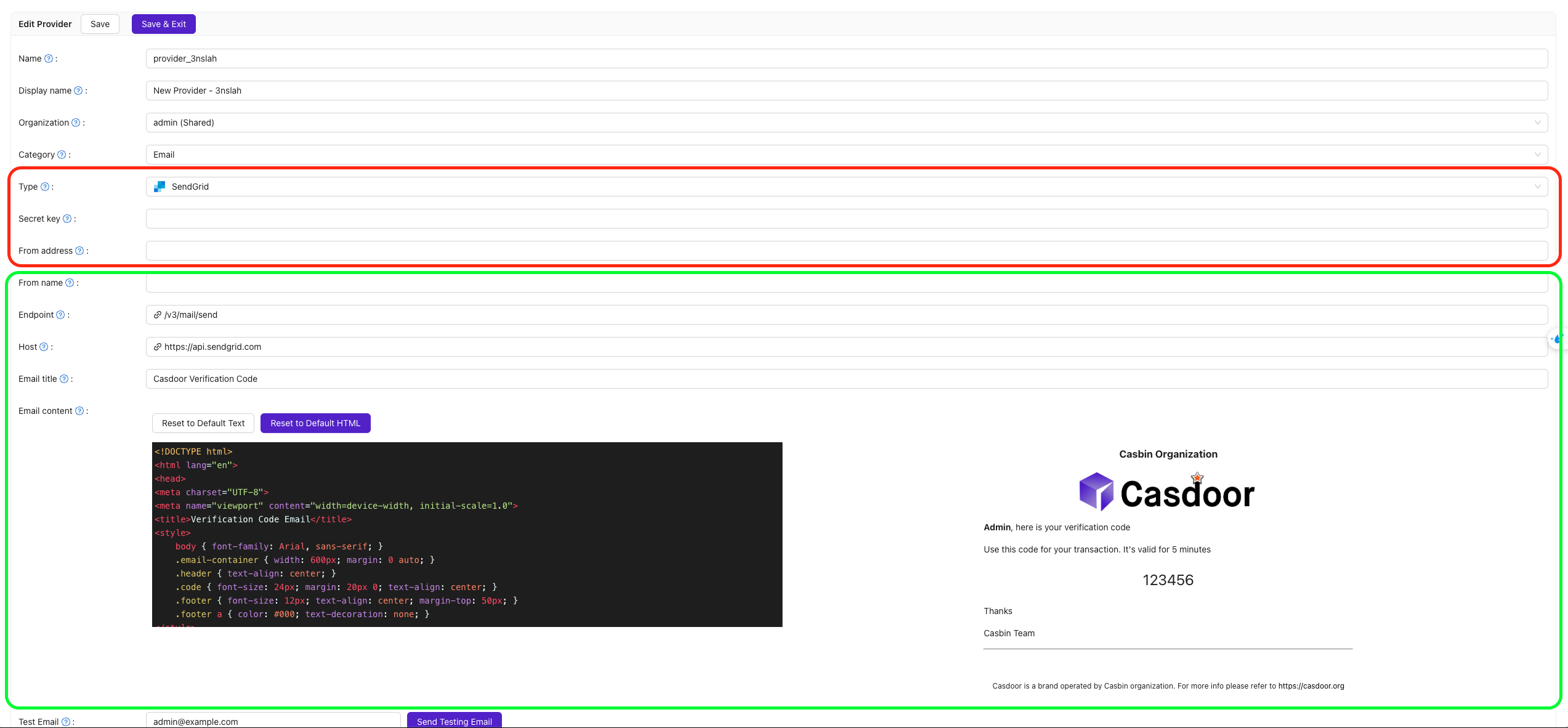

1. In the Casdoor admin console, go to Identity > Providers and add a provider.

2. Set Category to Email and Type to SendGrid.

3. Fill in the required fields:

   フィールド	説明
   シークレットキー	Your SendGrid API key
   差出人アドレス	Verified sender email or domain

4. Optionally, change the defaults:

   フィールド	デフォルト
   エンドポイント	/v3/mail/send
   ホスト	https://api.sendgrid.com

5. Optionally, fill in the remaining fields:

   フィールド	説明
   From Name	Sender display name
   メールタイトル	件名
   Email content	Body (HTML supported)
   テストメール	Recipient for Send Testing Email



6. Save the provider.

Verify the result

Click Send Testing Email and check that the message arrives at the Test Email address.

See also

• Email providers
