Store files on a Synology NAS

This guide explains how to store the uploaded files of Casdoor on a Synology NAS through its S3-compatible API.

---

Learning outcomes

• Add a Synology NAS as a storage provider in Casdoor.

What you need

• A Synology NAS with an S3-compatible endpoint and keys. See the Synology developer documentation.
• Administrator access to the Casdoor admin console

---

Add the provider in Casdoor

1. In the Casdoor admin console, go to Identity > Providers and add a provider.

2. Set Category to Storage and Type to Synology.

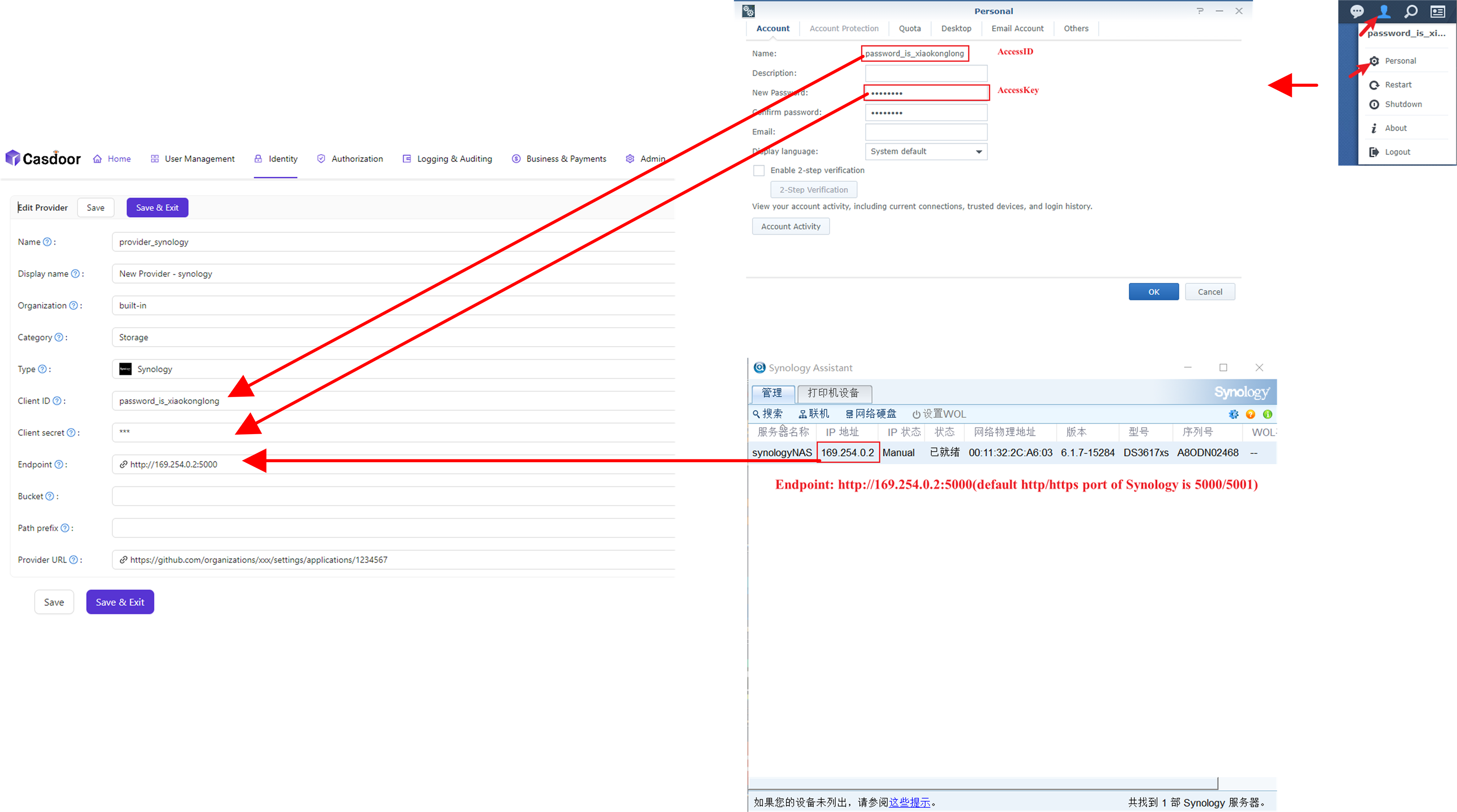

3. Fill in the fields. At least Client ID, Client secret, and Endpoint are required.

   Casdoor field	Synology / meaning	必須
   Client ID	SecretId (access key)	はい
   Client secret	SecretKey	はい
   Endpoint	S3 API endpoint	はい
   Bucket	Bucket name	いいえ
   パスプレフィックス	パスプレフィックス	いいえ
   Domain	Custom domain	いいえ
   Region ID	リージョン	いいえ



4. Save the provider.

See also

• Storage providers
