Spring Security filter (OIDC)

This guide integrates Casdoor with your application using Spring Security Filter and OIDC.

步骤1：部署Casdoor

Deploy the Casdoor server. After deployment, confirm:

The Casdoor server is running at http://localhost:8000.

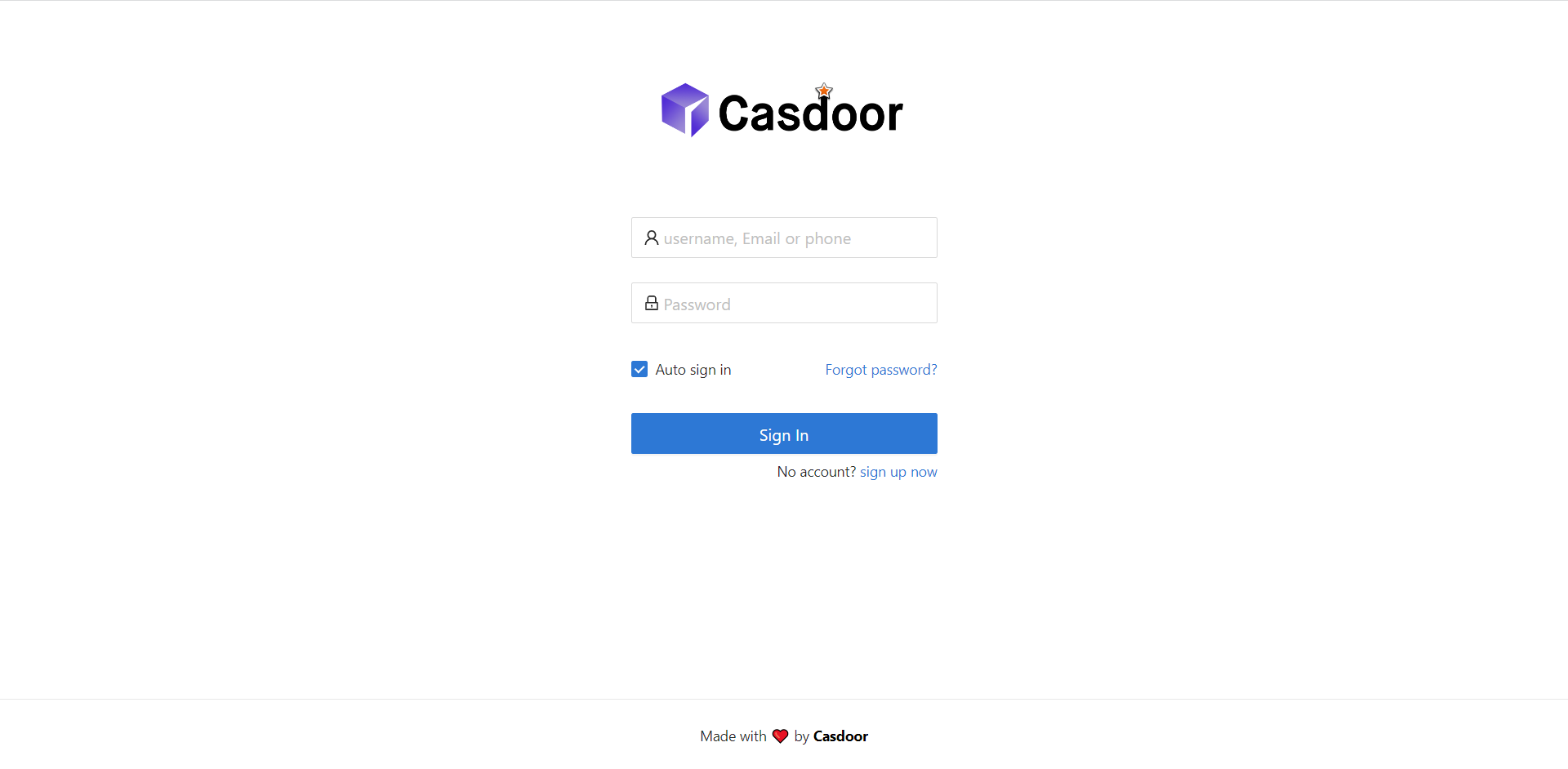

The Casdoor login page is at http://localhost:7001.
Test login with credentials admin and 123.

验证这些步骤后，按照下面的步骤将Casdoor与您的应用程序集成。

Step 2: Configure the Casdoor application

Create or edit a Casdoor application and add your redirect URL (see next section for how to get it).
在证书编辑页面上获取你的Certificate。
根据需要添加提供商和其他设置。

Note Application Name, Organization Name, Redirect URL, Client ID, Client Secret, and Certificate from the application page for the next step.

步骤3：配置Spring Security

Customize the Spring Security filter to process tokens:

注意事项

Replace the placeholders with your own Casdoor instance (Client ID, Client secret, etc.).

server:
  port: 8080
casdoor:
  endpoint: http://CASDOOR_HOSTNAME:8000
  client-id: <Client ID>
  client-secret: <Client Secret>
  certificate: <Certificate>
  organization-name: <Organization Name>
  application-name: <Application Name>
  redirect-url: http://FRONTEND_HOSTNAME/callback

注意事项

Default <FRONTEND_HOSTNAME> is localhost:3000; redirect URL is http://localhost:3000/callback. Add this redirect URL in the Casdoor application.

步骤4：配置前端

Install casdoor-js-sdk and configure it as follows:

安装 casdoor-js-sdk。

npm i casdoor-js-sdk
# or
yarn add casdoor-js-sdk

设置 SDK。

import Sdk from "casdoor-js-sdk";

// Serverurl is the URL where spring security is deployed
export const ServerUrl = "http://BACKEND_HOSTNAME:8080";

const sdkConfig = {
  serverUrl: "http://CASDOOR_HOSTNAME:8000",
  clientId: "<your client id>",
  appName: "<your application name>",
  organizationName: "<your organization name>",
  redirectPath: "/callback",
};

export const CasdoorSDK = new Sdk(sdkConfig);

步骤5：设置演示

创建一个Spring Boot应用程序。

添加一些配置来处理JWT。

@EnableWebSecurity
public class SecurityConfig {

    private final JwtTokenFilter jwtTokenFilter;

    public SecurityConfig(JwtTokenFilter jwtTokenFilter) {
        this.jwtTokenFilter = jwtTokenFilter;
    }

    @Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
        // 启用CORS并禁用CSRF
        http = http.cors(corsConfig -> corsConfig
                .configurationSource(configurationSource())
        ).csrf().disable();

        // 将会话管理设置为无状态
        http = http
                .sessionManagement()
                .sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                .and();

        // 在端点上设置权限
        http.authorizeHttpRequests(authorize -> authorize
                .mvcMatchers("/api/redirect-url", "/api/signin").permitAll()
                .mvcMatchers("/api/**").authenticated()
        );

        // 设置未经授权的请求异常处理程序
        http = http
                .exceptionHandling()
                .authenticationEntryPoint(
                        (request, response, ex) -> ResponseUtils.fail(response, "unauthorized")
                )
                .and();

        // 添加JWT令牌过滤器
        http.addFilterBefore(
                jwtTokenFilter,
                UsernamePasswordAuthenticationFilter.class
        );
        return http.build();
    }

    // ...

}

添加一个简单的JWT过滤器来拦截需要令牌验证的请求。

@Component
public class JwtTokenFilter extends OncePerRequestFilter {

    private final CasdoorAuthService casdoorAuthService;

    public JwtTokenFilter(CasdoorAuthService casdoorAuthService) {
        this.casdoorAuthService = casdoorAuthService;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request,
                                    HttpServletResponse response,
                                    FilterChain chain)
            throws ServletException, IOException {
        // 获取授权头并验证
        final String header = request.getHeader(HttpHeaders.AUTHORIZATION);
        if (!StringUtils.hasText(header) || !header.startsWith("Bearer ")) {
            chain.doFilter(request, response);
            return;
        }

        // 获取jwt令牌并验证
        final String token = header.split(" ")[1].trim();

        // 获取用户身份并将其设置在spring security上下文中
        UserDetails userDetails = null;
        try {
            CasdoorUser casdoorUser = casdoorAuthService.parseJwtToken(token);
            userDetails = new CustomUserDetails(casdoorUser);
        } catch (CasdoorAuthException exception) {
            logger.error("casdoor auth exception", exception);
            chain.doFilter(request, response);
            return;
        }

        UsernamePasswordAuthenticationToken authentication = new UsernamePasswordAuthenticationToken(
                userDetails,
                null,
                AuthorityUtils.createAuthorityList("ROLE_casdoor")
        );

        authentication.setDetails(
                new WebAuthenticationDetailsSource().buildDetails(request)
        );

        SecurityContextHolder.getContext().setAuthentication(authentication);
        chain.doFilter(request, response);
    }

}

当用户访问需要身份验证的接口时，JwtTokenFilter将从请求头Authorization获取令牌并验证。

定义一个Controller来处理用户登录Casdoor时的情况。用户登录后，他们将被重定向到服务器并携带code和state。然后服务器需要从Casdoor验证用户的身份，并通过这两个参数获取token。

@RestController
public class UserController {

    private static final Logger logger = LoggerFactory.getLogger(UserController.class);

    private final CasdoorAuthService casdoorAuthService;

    // ...

    @PostMapping("/api/signin")
    public Result signin(@RequestParam("code") String code, @RequestParam("state") String state) {
        try {
            String token = casdoorAuthService.getOAuthToken(code, state);
            return Result.success(token);
        } catch (CasdoorAuthException exception) {
            logger.error("casdoor auth exception", exception);
            return Result.failure(exception.getMessage());
        }
    }

    // ...
}
