Send email with SendGrid

This guide explains how to send the emails of Casdoor through the API of SendGrid.

---

Learning outcomes

• Create a SendGrid API key and verify a sender.
• Add SendGrid as an email provider in Casdoor and test it.

What you need

• A SendGrid account
• Administrator access to the Casdoor admin console

---

Prepare SendGrid

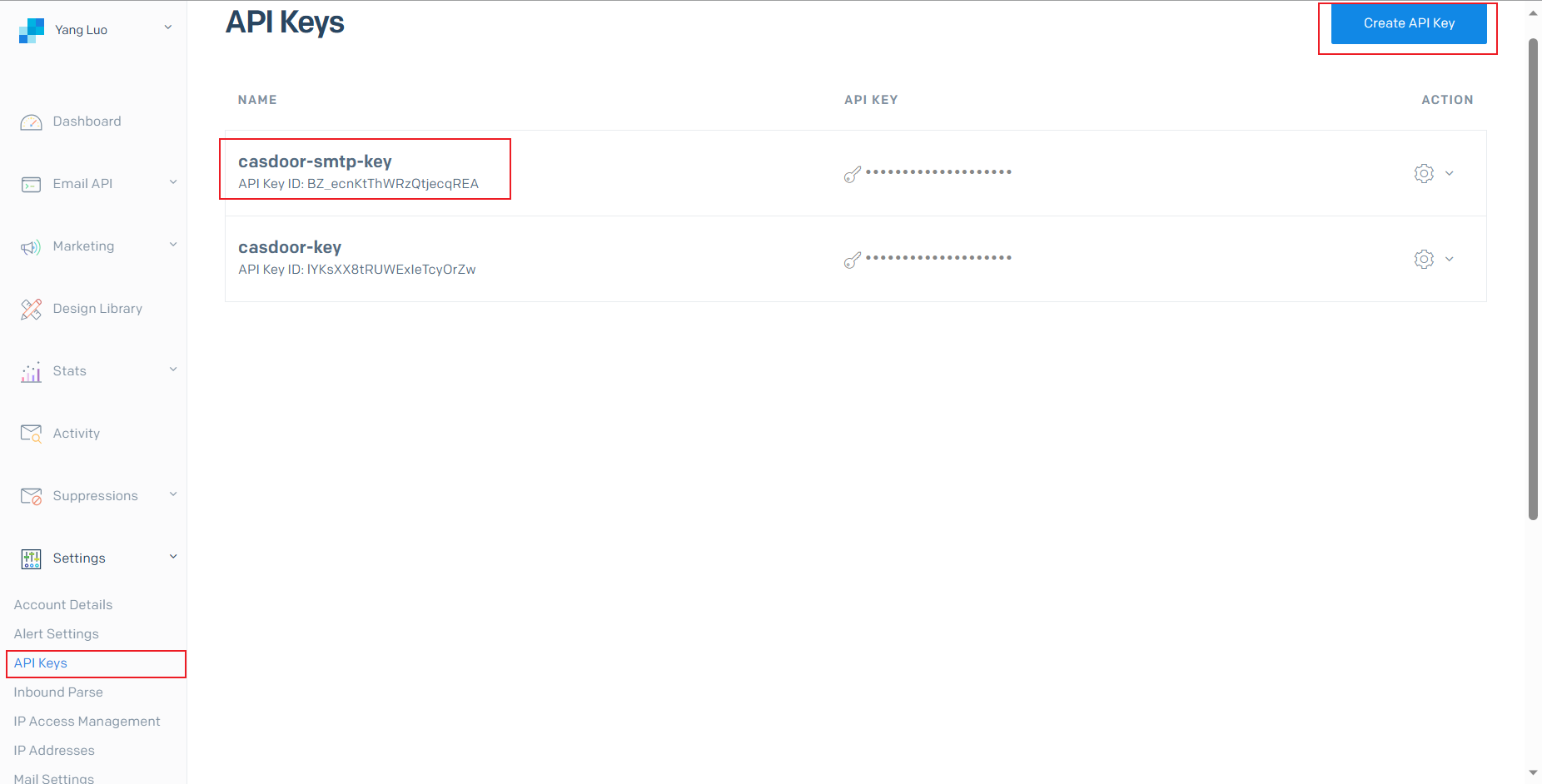

1. In the SendGrid dashboard, go to Settings > API Keys, click Create API Key, and select the permissions that you need. Copy the key.



2. Verify your sender with Single Sender Verification or Domain Authentication. See Sender Identity.

Add the provider in Casdoor

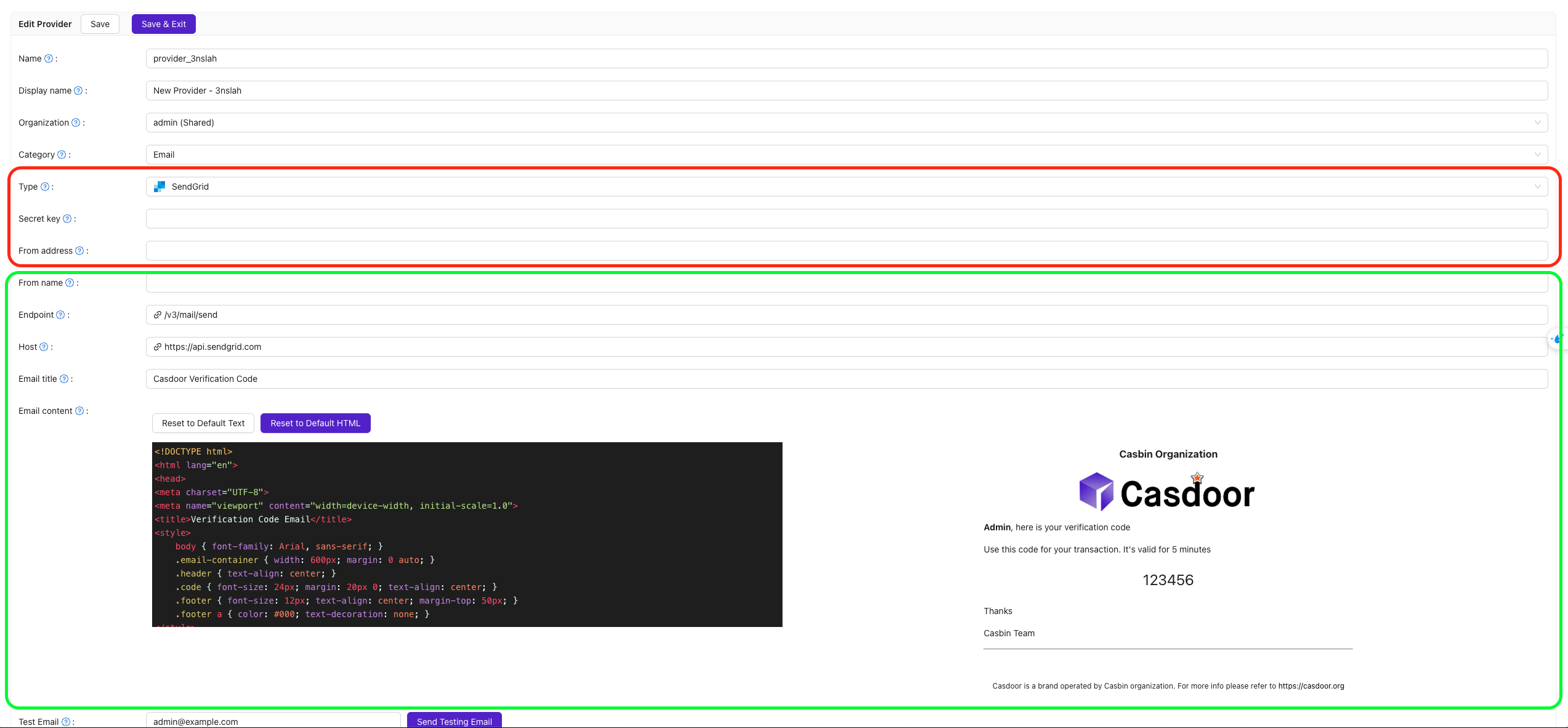

1. In the Casdoor admin console, go to Identity > Providers and add a provider.

2. Set Category to Email and Type to SendGrid.

3. Fill in the required fields:

   Field	Description
   Secret Key	Your SendGrid API key
   From Address	Verified sender email or domain

4. Optionally, change the defaults:

   Field	Default
   Endpoint	/v3/mail/send
   Host	https://api.sendgrid.com

5. Optionally, fill in the remaining fields:

   Field	Description
   From Name	Sender display name
   Email Title	Subject
   Email Content	Body (HTML supported)
   Test Email	Recipient for Send Testing Email



6. Save the provider.

Verify the result

Click Send Testing Email and check that the message arrives at the Test Email address.

See also

• Email providers
