Store files in Azure Blob Storage

This guide explains how to store the uploaded files of Casdoor, such as avatars, in Azure Blob Storage.

---

Learning outcomes

• Find the values of your storage account.
• Add Azure Blob as a storage provider in Casdoor.

What you need

• An Azure storage account with a container
• Administrator access to the Casdoor admin console

---

Find the values in Azure

Value	Where to find it
AccountName	The name of the storage account

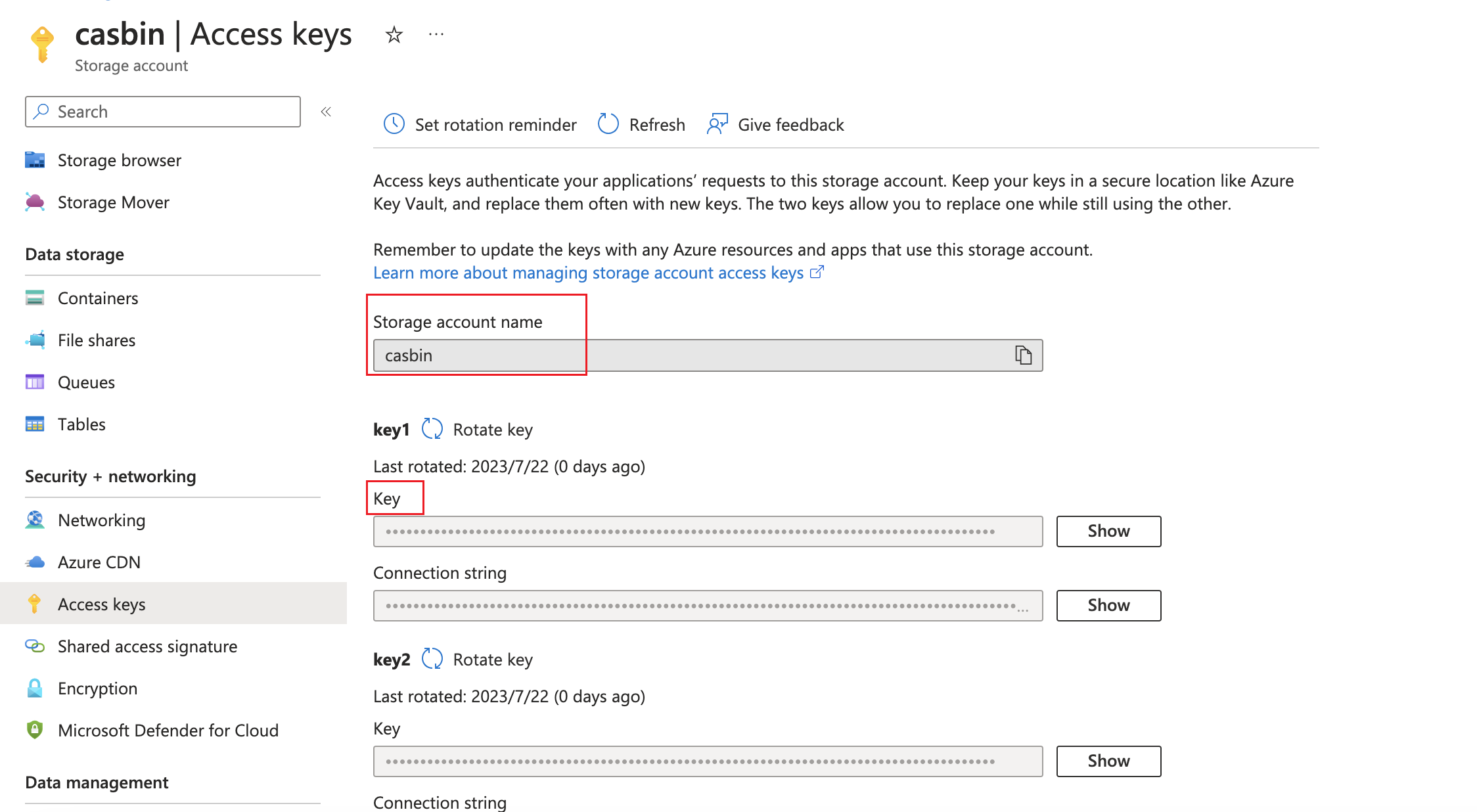

AccountKey	The storage account, Access keys

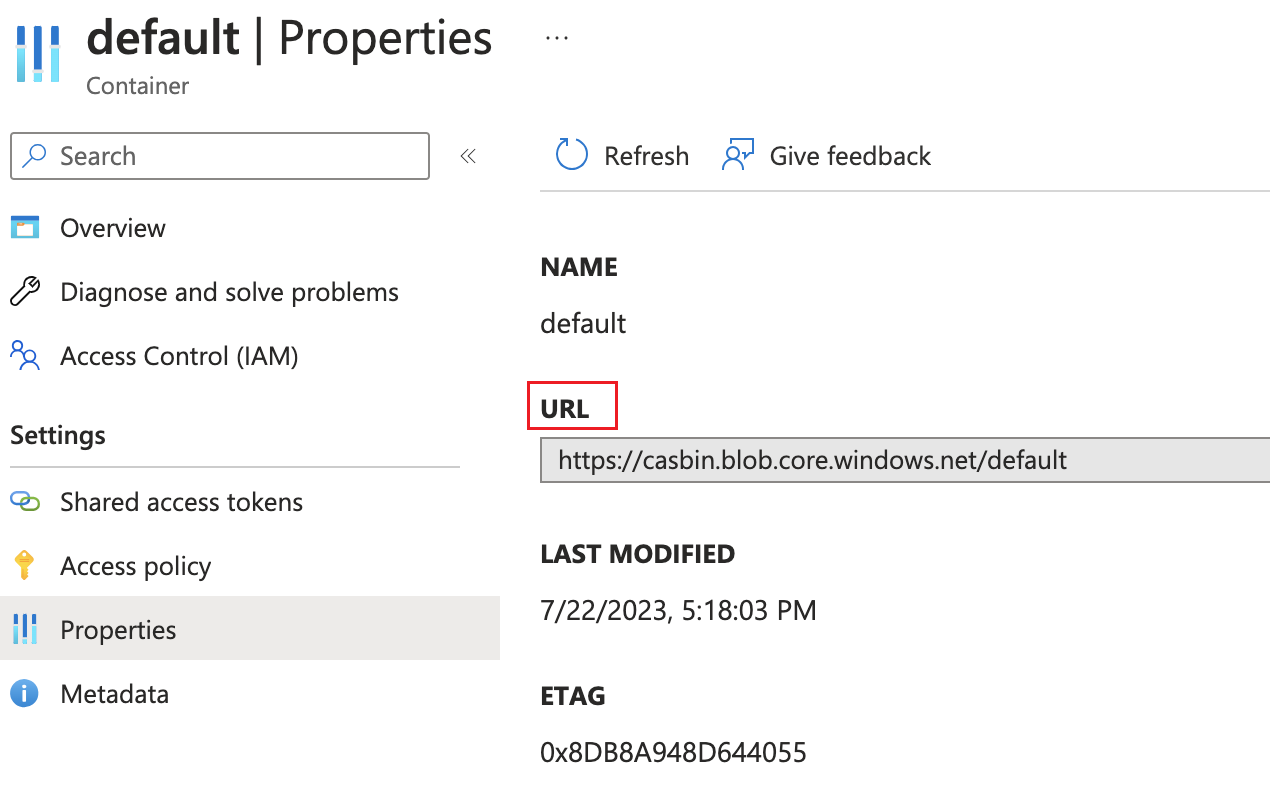

ContainerUrl	The properties of the container

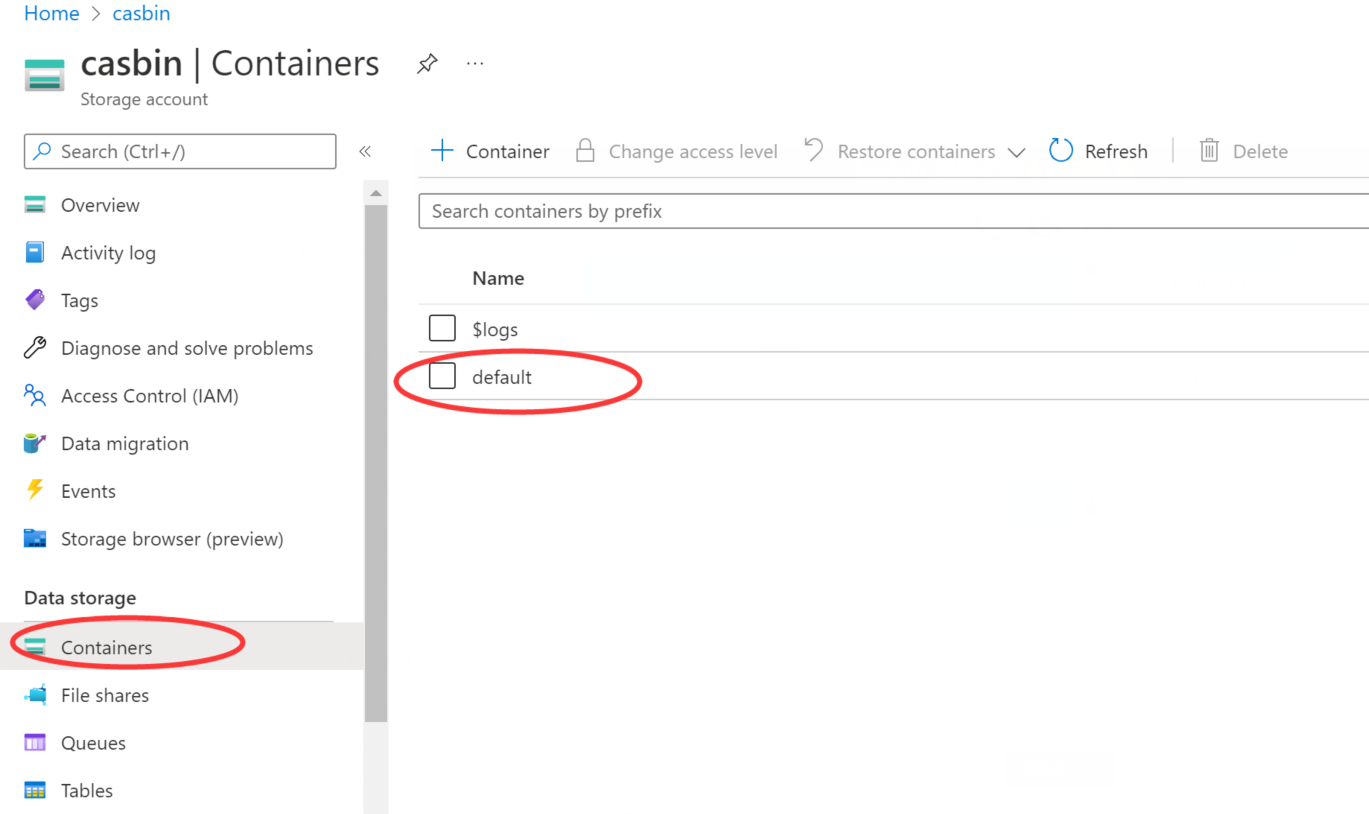

ContainerName	The name of the container, for example default
PrivateEndpoint	Optional. A private endpoint of the account

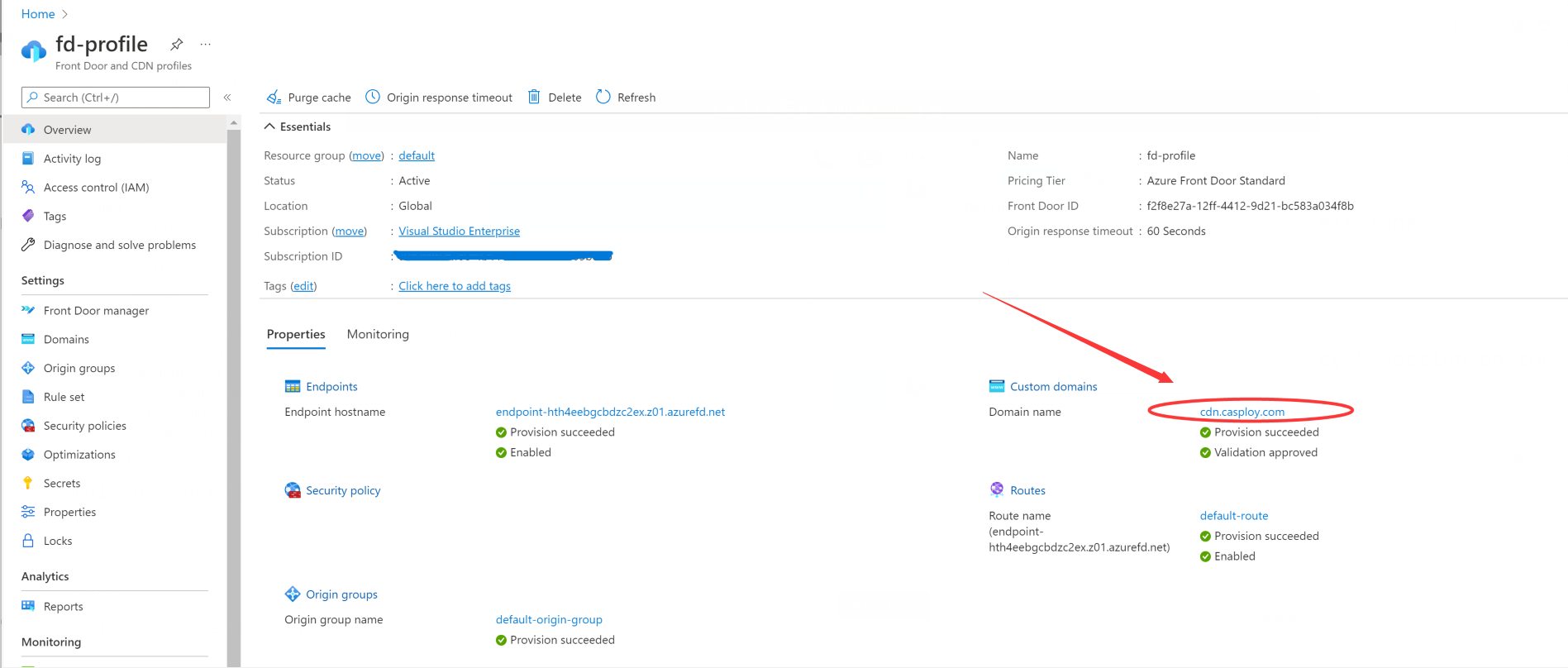

Domain	Optional. A custom domain, such as one of Azure CDN

Add the provider in Casdoor

1. In the Casdoor admin console, go to Identity > Providers and add a provider.

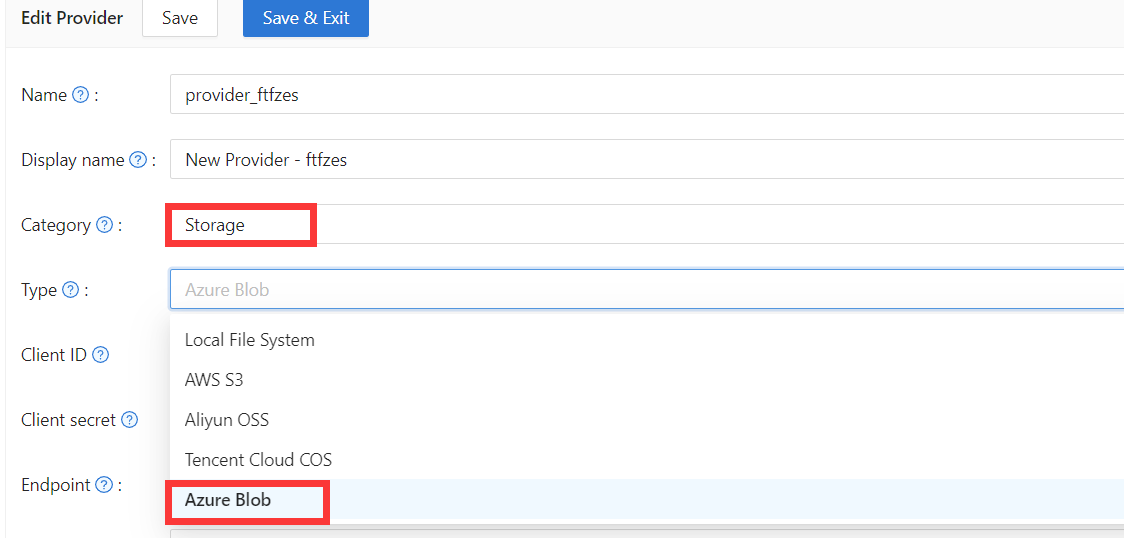

2. Set Category to Storage and Type to Azure Blob.



3. Fill in the fields:

   Casdoor field	Azure / meaning	Required
   Client ID	AccountName	Yes
   Client secret	AccountKey	Yes
   Endpoint	ContainerUrl	Yes
   Endpoint (Intranet)	PrivateEndpoint	No
   Bucket	ContainerName	Yes
   Path prefix	Path prefix	No
   Domain	Custom domain (e.g. CDN)	No

4. Save the provider.



See also

• Storage providers
