Install the Casdoor server

This guide explains how to install the Casdoor server on your own machine, connect it to a database, and sign in for the first time.

Learning outcomes​

  • Get Casdoor from a pre-built binary or build it from source.
  • Connect Casdoor to a database.
  • Run Casdoor in development mode and in production mode.
  • Sign in to the Casdoor admin console.

What you need​

Don't want to run it yourself?

Casdoor Cloud gives you a dedicated Casdoor instance that we host and keep upgraded for you, from $25/month with no per-user fees.

About the Casdoor server​

Casdoor is one repository, casdoor/casdoor, with two parts:

PartDescriptionStack
FrontendAdmin console and sign-in pagesTypeScript, React, Vite
BackendREST API and protocol endpointsGo, Beego, XORM

In production, the backend serves the built frontend, so you run a single process on a single port.

Supported databases​

Casdoor uses XORM to talk to the database and supports the databases that have an XORM driver:

  • MySQL
  • MariaDB
  • PostgreSQL
  • CockroachDB
  • SQL Server
  • Oracle
  • SQLite 3
  • TiDB

Get Casdoor​

Choose one of the two options.

Download a pre-built binary​

  1. Download the archive for your platform from GitHub Releases. Binaries are available for Linux, macOS, and Windows, each for x86_64 and arm64.

  2. Extract the archive. It contains the casdoor binary, the built frontend, and a sample conf/app.conf.

    # Linux and macOS
    tar -xzf casdoor_Linux_x86_64.tar.gz
    cd casdoor_Linux_x86_64

  3. Configure the database.

  4. Run the binary:

    ./casdoor

  5. Sign in to the admin console at http://localhost:8000.

Build from source​

  1. Clone the repository. Casdoor uses Go modules, so you can clone it anywhere.

    cd path/to/folder
    git clone https://github.com/casdoor/casdoor

  2. Configure the database.

  3. Run Casdoor in development mode or production mode.

uwaga

Use Yarn 1.x to build the frontend. npm can cause styling issues in the UI. See casdoor#294.

If Go fails to download dependencies, set the GOPROXY environment variable, for example to https://goproxy.cn/.

Configure the database​

Casdoor reads its settings from conf/app.conf. The default settings use MySQL. For a minimal setup, set driverName, dataSourceName, and dbName. For every other option, see Configuration.

MySQL​

  1. Create a database named casdoor.

  2. Set the connection in conf/app.conf:

    driverName = mysql
    dataSourceName = root:123456@tcp(localhost:3306)/
    dbName = casdoor

PostgreSQL​

  1. Create a database, for example casdoor. XORM needs the database to exist before Casdoor starts.

  2. Set the connection in conf/app.conf:

    driverName = postgres
    dataSourceName = user=postgres password=postgres host=localhost port=5432 sslmode=disable dbname=casdoor
    dbName = casdoor
informacja

For PostgreSQL, the database name appears twice: in dbName and as dbname inside dataSourceName. Both must be set. See casdoor#2127.

CockroachDB​

CockroachDB uses the PostgreSQL driver and the same settings as PostgreSQL, with one extra parameter:

driverName = postgres
dataSourceName = user=postgres password=postgres host=localhost port=5432 sslmode=disable dbname=casdoor serial_normalization=virtual_sequence
dbName = casdoor
uwaga

Add serial_normalization=virtual_sequence to dataSourceName before you create the database. Without it, Casdoor reports an error about an existing database every time it starts.

SQLite 3​

Set the connection in conf/app.conf:

driverName = sqlite
dataSourceName = file:casdoor.db?cache=shared
dbName = casdoor

Run Casdoor from source​

Run in development mode​

In development mode, the backend and the frontend run as two processes. The frontend reloads when you change its code.

  1. In the repository root, start the backend. It listens on port 8000.

    go run main.go

  2. In a second terminal, start the frontend. It is a Vite project and listens on port 7001.

    cd web
    yarn install
    yarn start

  3. Sign in to the admin console at http://localhost:7001.

Run in production mode​

In production mode, you build the frontend into static files and the backend serves them on port 8000.

  1. Build the frontend:

    cd web
    yarn install
    yarn build

  2. In the repository root, build and run the backend.

    On Linux and macOS:

    go build
    ./casdoor

    On Windows:

    go build
    casdoor.exe

  3. Sign in to the admin console at http://localhost:8000.

To listen on a different port, set httpport in conf/app.conf and restart the backend.

To load the configuration from another location, pass the --config flag. The flag takes an absolute or a relative path and replaces the default conf/app.conf lookup.

./casdoor --config /etc/casdoor/app.conf

Sign in to the admin console​

  1. Open the Casdoor URL in a browser: http://localhost:7001 in development mode, or http://localhost:8000 in production mode and for the pre-built binary.
  2. Sign in with the organization built-in, the username admin, and the password 123.
ważne

Change the password of built-in/admin before you expose Casdoor to a network.

Choose the URL that your applications use​

Applications that sign users in with Casdoor need the URL of the Casdoor sign-in page:

ModeCasdoor URL for your applications
Developmenthttp://localhost:7001
Productionhttps://<your-casdoor-domain>, or the URL of your reverse proxy

For example, Casnode signs users in with Casdoor. Its serverUrl is http://localhost:7001 in development and https://door.casdoor.com in production.

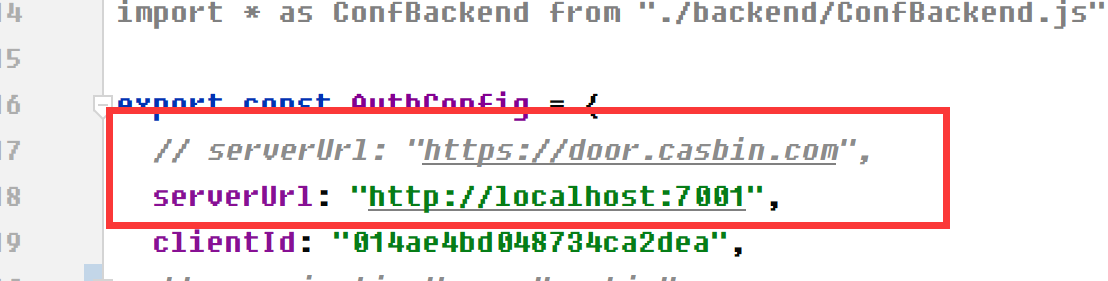

Casnode configuration with the Casdoor server URL
