Add a SAML identity provider

This guide explains how to let users sign in to Casdoor with any SAML 2.0 identity provider (IdP), such as Google Workspace, Azure AD, or Okta.

Learning outcomes

Register Casdoor as a service provider at the IdP.
Import the metadata of the IdP into a Custom SAML provider.

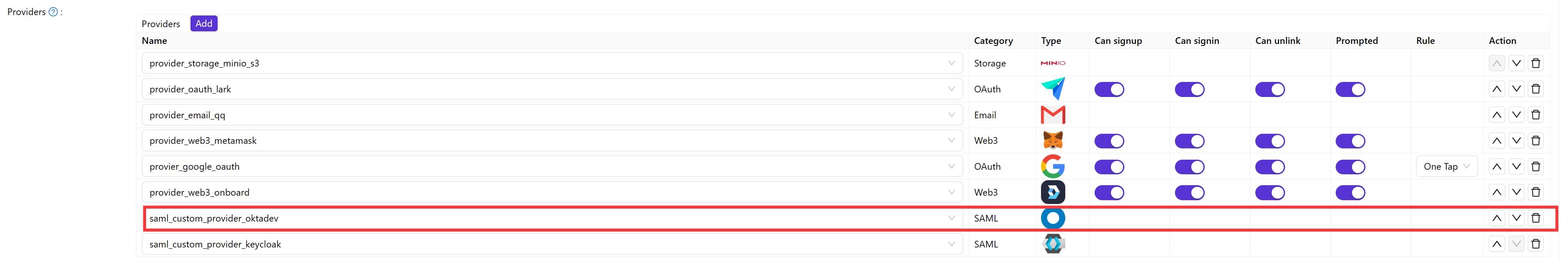

Add the provider to an application.

What you need

Administrator access to the IdP
Administrator access to the Casdoor admin console

Register Casdoor at the IdP

At the IdP, register Casdoor as a service provider with the following values:

Setting	Value
ACS URL	`https://<your-casdoor-domain>/api/acs`, for example `https://door.example.com/api/acs`. For a local instance at `http://localhost:8000`, the URL is `http://localhost:8000/api/acs`
SP entity ID	The same URL as the ACS URL
Binding	HTTP POST. The endpoint accepts only `POST`

Get the metadata of the IdP

Export the SAML metadata of the IdP as XML. It contains the entity ID, the single sign-on endpoint, and the certificate. Some IdPs, such as Keycloak, provide the metadata only after you have entered the service provider details.

Add the provider in Casdoor

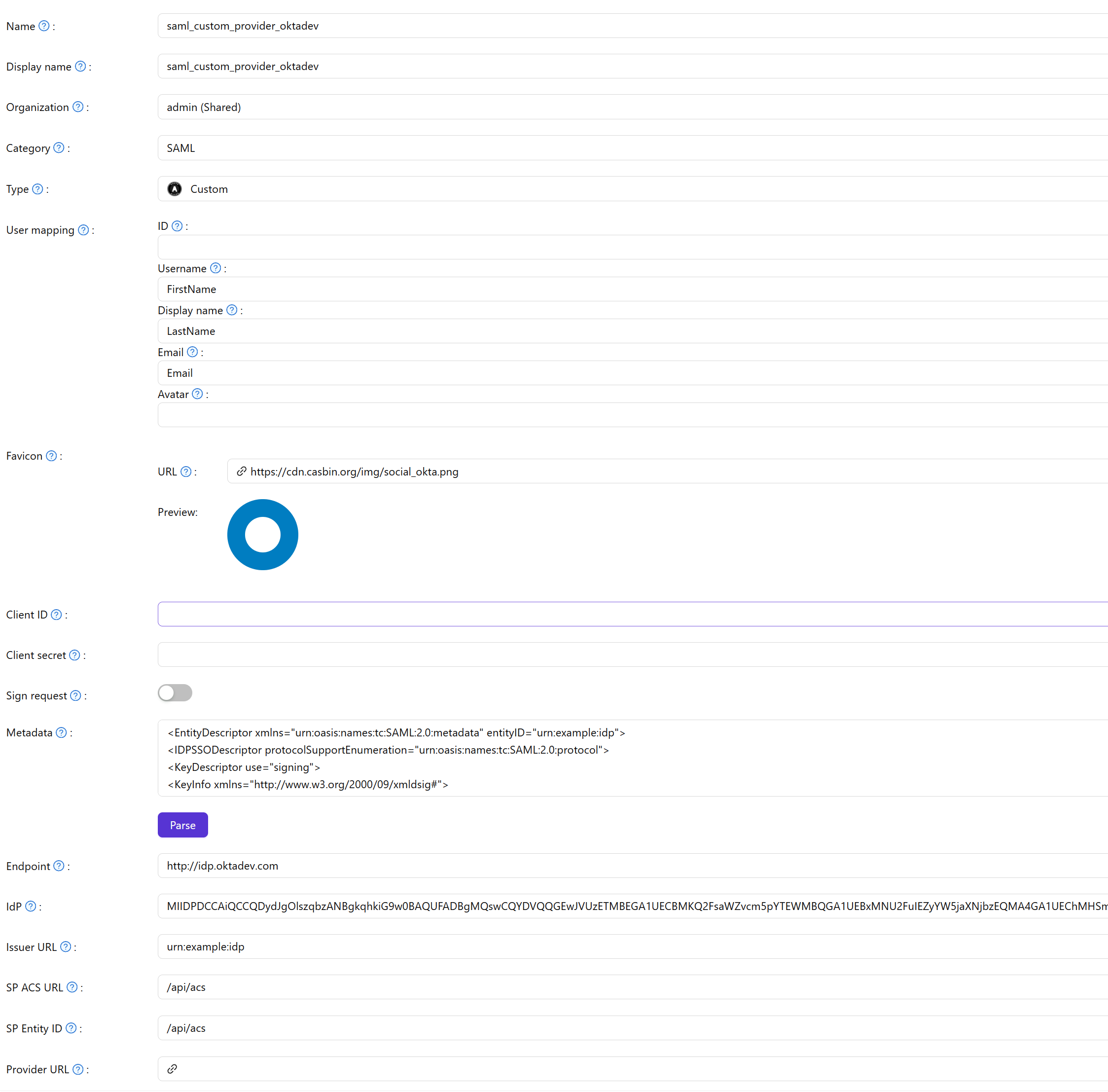

In the Casdoor admin console, go to Identity > Providers and add a provider.
Set Category to SAML and Type to Custom.
Set Favicon to the URL of the logo of the IdP.
Paste the metadata of the IdP into Metadata and click Parse. Casdoor fills in Endpoint, IdP, Issuer URL, SP ACS URL, and SP Entity ID.
Save the provider.
