Sign users in to a Qt desktop app

This guide explains how to run the Casdoor example for Qt and how to add the same sign-in flow to your own C++ app with casdoor-cpp-sdk. The example shows the Casdoor sign-in page in an embedded browser.

---

Learning outcomes

• Configure and run the example app.
• Create a Casdoor client in C++.
• Open the sign-in page, catch the callback, and verify the token.

What you need

• Qt 6 with the Qt WebEngine module. On Windows, use the MSVC build of Qt.
• CMake 3.16 or later and a C++17 compiler
• OpenSSL 1.1.1 or 3.x
• An application in Casdoor

CMake downloads casdoor-cpp-sdk when it configures the project. You don't install the SDK yourself.

Sample code

• casdoor-cpp-qt-example

---

Run the example

1. In the Casdoor admin console, add http://localhost:8080/callback to the Redirect URLs of the application. Nothing has to listen on that port, because the example catches the redirect inside its embedded browser.

2. Clone casdoor-cpp-qt-example and set the following values:

   Назва	Опис	Файл
   kCasdoorEndpoint	Your Casdoor server URL, like http://localhost:8000	config.h
   kClientId	Client ID вашого додатку Casdoor	config.h
   kClientSecret	Client Secret вашого додатку Casdoor	config.h
   kCertificate	The public certificate of the cert your application uses	config.h
   kOrganizationName	Назва вашої організації Casdoor	config.h
   kApplicationName	Назва вашого додатку Casdoor	config.h
   kRedirectUri	The redirect URL, http://localhost:8080/callback	config.h

3. Build and start the app.

   • In Qt Creator: Open CMakeLists.txt and press Ctrl + R.

   • On the command line:

     cmake -S . -B build -DCMAKE_PREFIX_PATH=/path/to/Qt/6.x/<compiler>
     cmake --build build
     ./build/casdoor-cpp-qt-example

     On Windows, if CMake can't find OpenSSL, add -DOPENSSL_ROOT_DIR="C:/Program Files/OpenSSL-Win64".

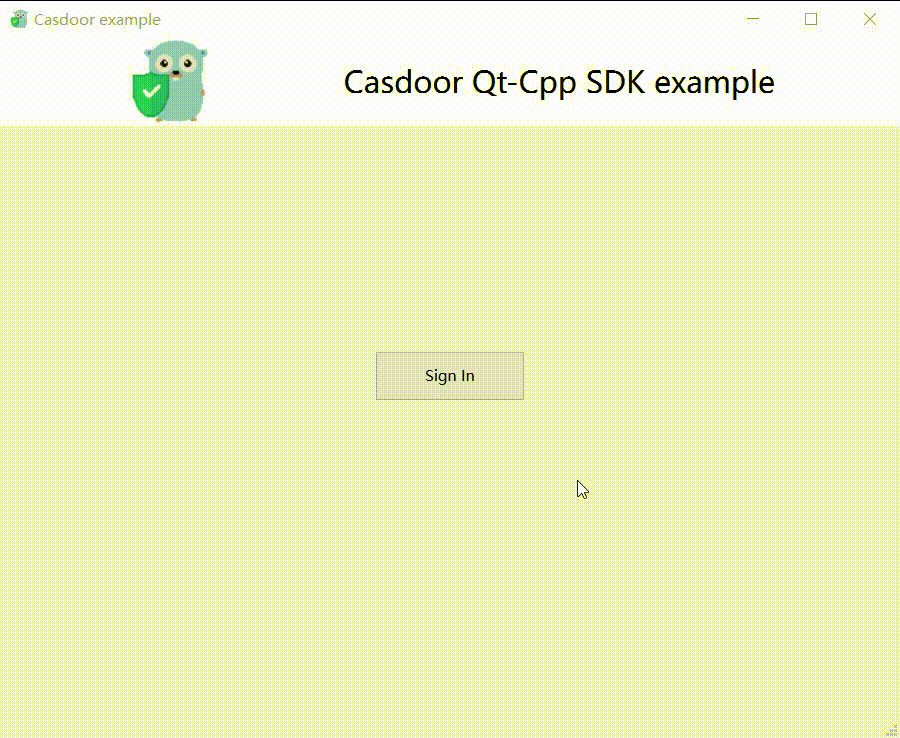

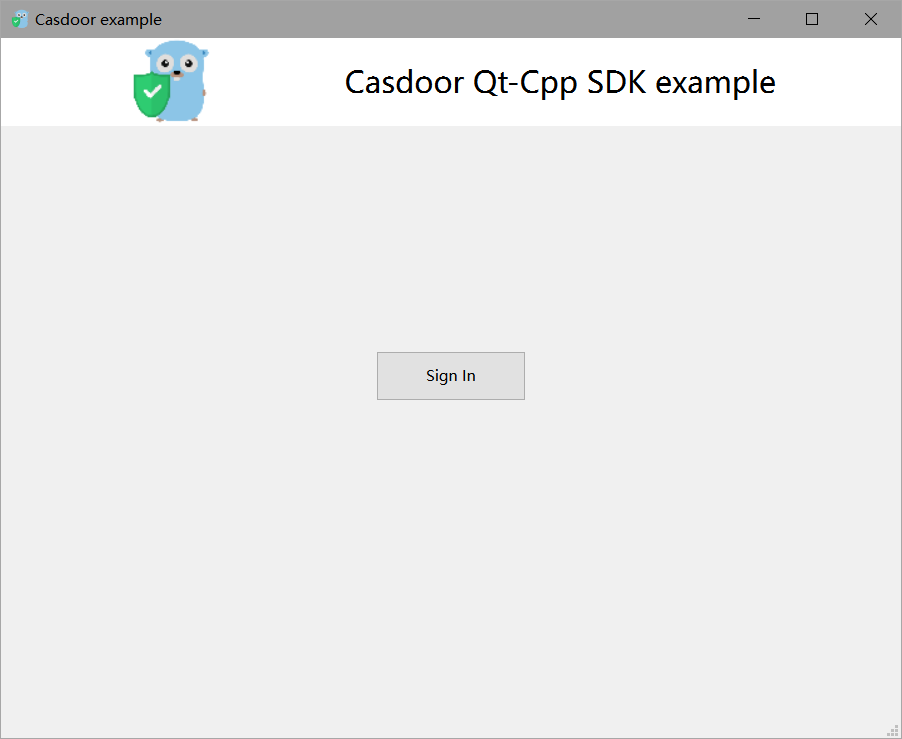

4. In the app window, click Sign In.

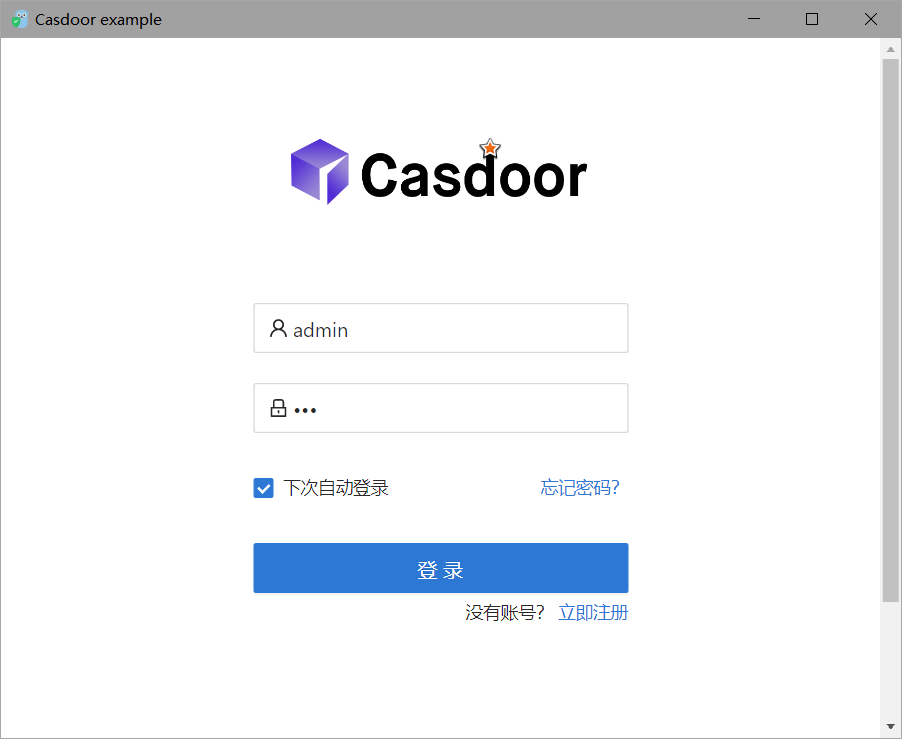

   The Casdoor sign-in page opens in a window.

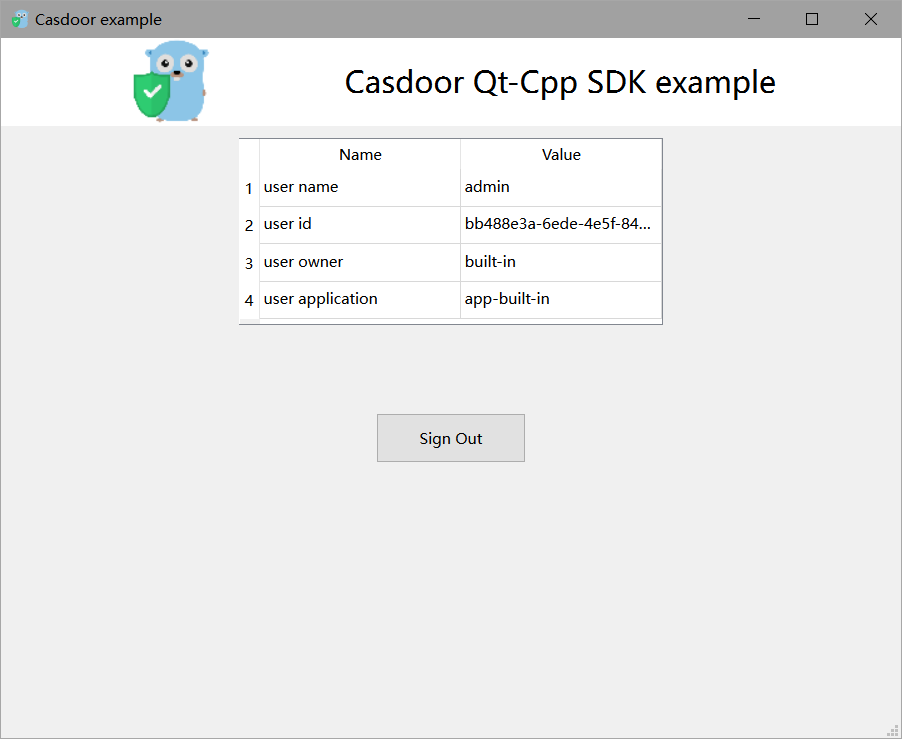

5. Sign in. The app shows the profile of the user.



Add sign-in to your app

Create the client

#include <casdoor/casdoor.h>

casdoor::Config config;
config.endpoint = kCasdoorEndpoint;
config.client_id = kClientId;
config.client_secret = kClientSecret;
config.certificate = kCertificate;
config.organization_name = kOrganizationName;
config.application_name = kApplicationName;

casdoor::Client casdoor(config);

Open the sign-in window

Generate a random state, build the sign-in URL, and load it in the embedded browser:

// A random state ties the callback to this sign-in attempt
m_state = QUuid::createUuid().toString(QUuid::WithoutBraces);
std::string signinUrl = m_casdoor.GetSigninUrl(kRedirectUri, m_state.toStdString());

m_webview->load(QUrl(QString::fromStdString(signinUrl)));
m_webview->show();

Catch the callback

After the user signs in, Casdoor redirects to the redirect URL with code and state. A subclass of QWebEnginePage stops the embedded browser from loading that URL and hands the URL to the app:

bool CallbackPage::acceptNavigationRequest(const QUrl& url, NavigationType type, bool isMainFrame)
{
    if (isMainFrame && url.adjusted(QUrl::RemoveQuery | QUrl::RemoveFragment) == m_redirectUri) {
        emit callbackReceived(url);
        return false;
    }
    return QWebEnginePage::acceptNavigationRequest(url, type, isMainFrame);
}

Get the user from the code

Check state, exchange the code for a token, and verify the token with the certificate:

QUrlQuery query(url);
QString code = query.queryItemValue("code", QUrl::FullyDecoded);
QString state = query.queryItemValue("state", QUrl::FullyDecoded);
if (code.isEmpty() || state != m_state) {
    return;
}

try {
    casdoor::Token token = m_casdoor.GetOAuthToken(code.toStdString());
    casdoor::Claims claims = m_casdoor.ParseJwtToken(token.access_token);
    // claims.name, claims.display_name, claims.email, claims.owner, claims.payload ...
} catch (const casdoor::Error& e) {
    QMessageBox::warning(this, "Sign in failed", e.what());
}

ParseJwtToken throws casdoor::Error if the signature, the expiry, or the audience of the token is invalid.

Next steps

casdoor-cpp-sdk also refreshes tokens and manages users. See the casdoor-cpp-sdk repository.

See also

• Casdoor SDKs
• OAuth 2.0
