Sign users in to an Electron app

This guide explains how to run the Casdoor example for Electron and how to add the same sign-in flow to your own app. The user signs in in the system browser, and the browser hands the result back to the app through a custom protocol.

---

Learning outcomes

• Configure, run, and package the example app.
• Register a custom protocol for your app.
• Open the Casdoor sign-in page in the browser and receive the authorization code.
• Exchange the code for a token and read the user.

What you need

• Node.js with npm or Yarn
• An application in Casdoor. Without one, the example uses the Casdoor demo site and its application app-casnode.

Sample code

• casdoor-electron-example

---

Run the example

1. Clone casdoor-electron-example and install its dependencies.

2. Set the following values. All of them are strings.

   Nombre	Descripción	Ruta
   serverUrl	Tu URL del servidor Casdoor	src/App.js
   clientId	El ID de Cliente de tu aplicación Casdoor	src/App.js
   appName	El nombre de tu aplicación Casdoor	src/App.js
   redirectPath	La ruta de la URL de redirección para tu aplicación Casdoor, será /callback si no se proporciona	src/App.js
   clientSecret	El Secreto del Cliente de tu aplicación Casdoor	src/App.js
   casdoorServiceDomain	Your Casdoor server URL	public/electron.js

3. Build and start the app with npm run dev or yarn dev.

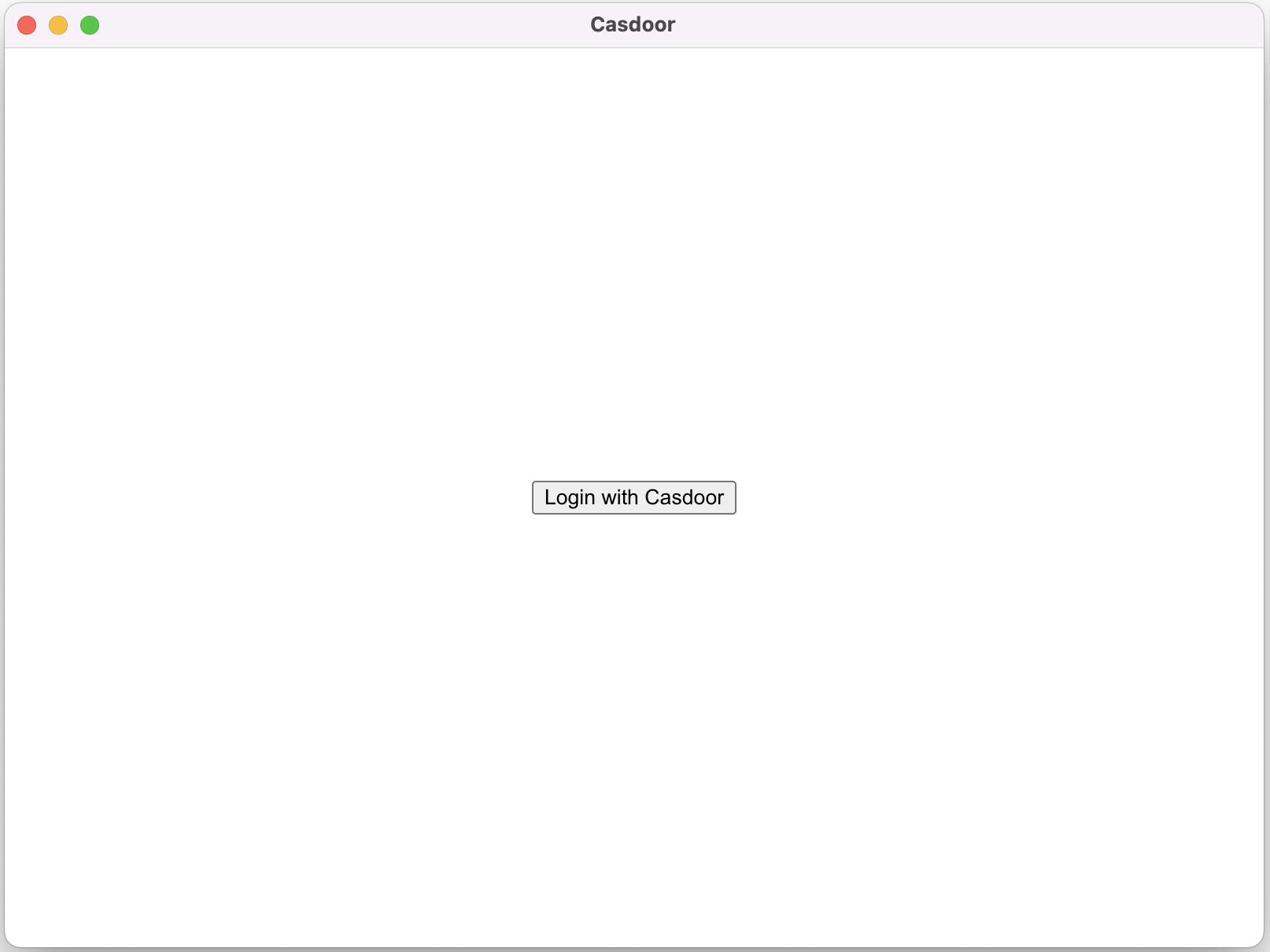

4. In the app window, click Login with Casdoor.

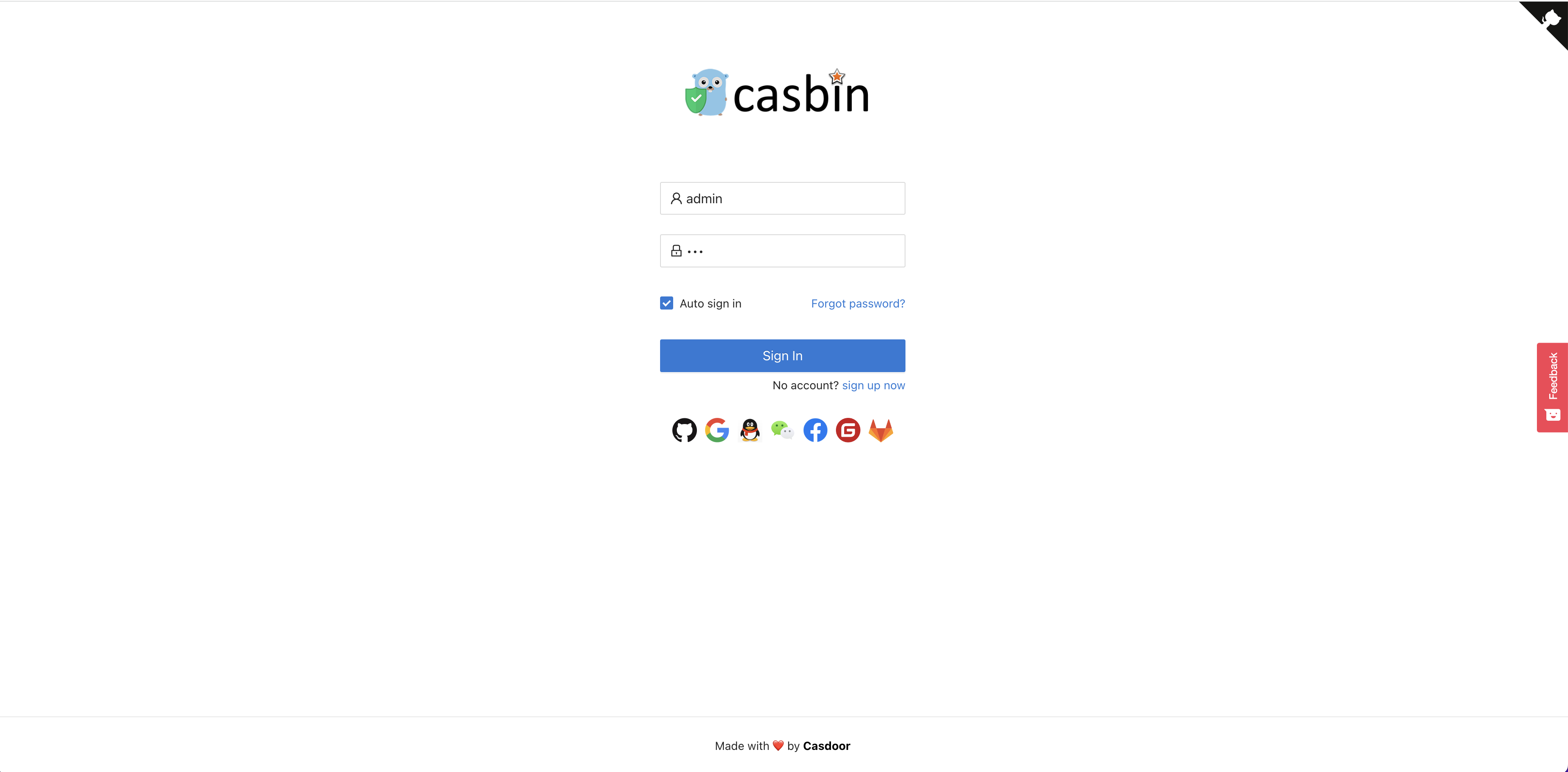

   The Casdoor sign-in page opens in your browser.

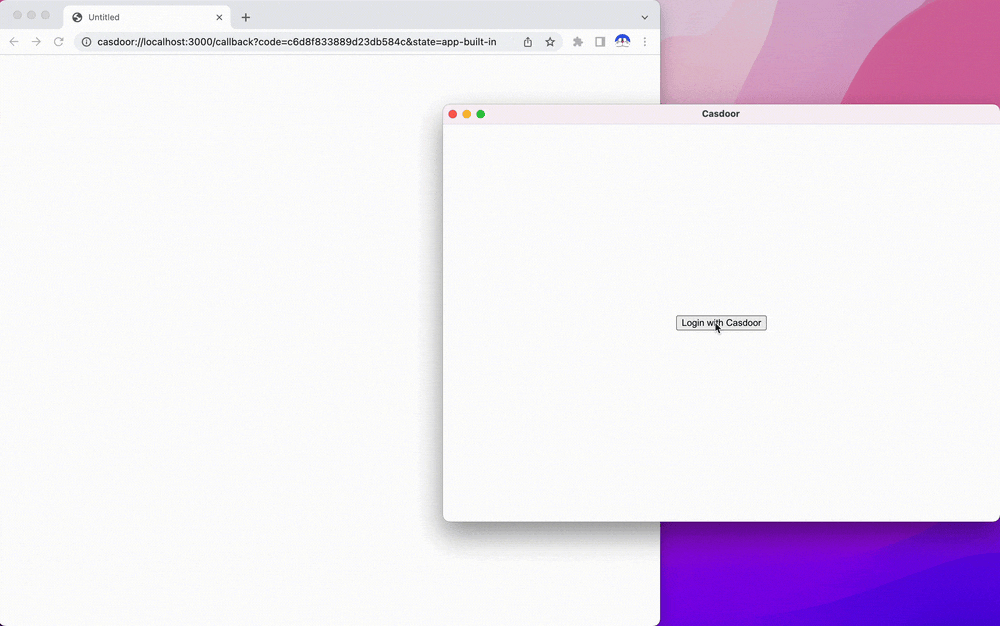

5. Sign in. The browser opens the app again, and the app shows your username.



Package the example

To package the app for distribution, run npm run make or yarn make. The command creates the out folder with the package:

// Example for macOS out/
├── out/make/zip/darwin/x64/casdoor-electron-example-darwin-x64-1.0.0.zip
├── ...
└── out/casdoor-electron-example-darwin-x64/casdoor-electron-example.app/Contents/MacOS/casdoor-electron-example

Add sign-in to your app

Register the custom protocol

Register the casdoor protocol, so that the browser can open your app and pass the authorization code to it:

const protocol = "casdoor";

if (process.defaultApp) {
  if (process.argv.length >= 2) {
    app.setAsDefaultProtocolClient(protocol, process.execPath, [
      path.resolve(process.argv[1]),
    ]);
  }
} else {
  app.setAsDefaultProtocolClient(protocol);
}

Open the sign-in page in the browser

Build the sign-in URL and open it in the system browser. Change the first five variables to the values of your Casdoor instance.

const serverUrl = "https://door.casdoor.com";
const appName = "app-casnode";
const redirectPath = "/callback";
const clientId = "014ae4bd048734ca2dea";
const clientSecret = "f26a4115725867b7bb7b668c81e1f8f7fae1544d";

const redirectUrl = "casdoor://localhost:3000" + redirectPath;

const signinUrl = `${serverUrl}/login/oauth/authorize?client_id=${clientId}&response_type=code&redirect_uri=${encodeURIComponent(redirectUrl)}&scope=profile&state=${appName}&noRedirect=true`;

shell.openExternal(signinUrl); //Open the login url in the browser

Receive the authorization code

After the user signs in, the browser opens your app through the custom protocol. Listen for that event:

const gotTheLock = app.requestSingleInstanceLock();
const ProtocolRegExp = new RegExp(`^${protocol}://`);

if (!gotTheLock) {
  app.quit();
} else {
  app.on("second-instance", (event, commandLine, workingDirectory) => {
    if (mainWindow) {
      if (mainWindow.isMinimized()) mainWindow.restore();
      mainWindow.focus();
      commandLine.forEach((str) => {
        if (ProtocolRegExp.test(str)) {
          const params = url.parse(str, true).query;
          if (params && params.code) {
            store.set("casdoor_code", params.code);
            mainWindow.webContents.send("receiveCode", params.code);
          }
        }
      });
    }
  });
  app.whenReady().then(createWindow);

  app.on("open-url", (event, openUrl) => {
    const isProtocol = ProtocolRegExp.test(openUrl);
    if (isProtocol) {
      const params = url.parse(openUrl, true).query;
      if (params && params.code) {
        store.set("casdoor_code", params.code);
        mainWindow.webContents.send("receiveCode", params.code);
      }
    }
  });
}

The authorization code is in casdoor_code or in params.code.

Exchange the code for the user

async function getUserInfo(clientId, clientSecret, code) {
  const { data } = await axios({
    method: "post",
    url: authCodeUrl,
    headers: {
      "content-type": "application/json",
    },
    data: JSON.stringify({
      grant_type: "authorization_code",
      client_id: clientId,
      client_secret: clientSecret,
      code: code,
    }),
  });
  const resp = await axios({
    method: "get",
    url: `${getUserInfoUrl}?accessToken=${data.access_token}`,
  });
  return resp.data;
}

ipcMain.handle("getUserInfo", async (event, clientId, clientSecret) => {
  const code = store.get("casdoor_code");
  const userInfo = await getUserInfo(clientId, clientSecret, code);
  store.set("userInfo", userInfo);
  return userInfo;
});

For the requests behind this flow, see OAuth 2.0.

See also

• Casdoor SDKs
• OAuth 2.0
